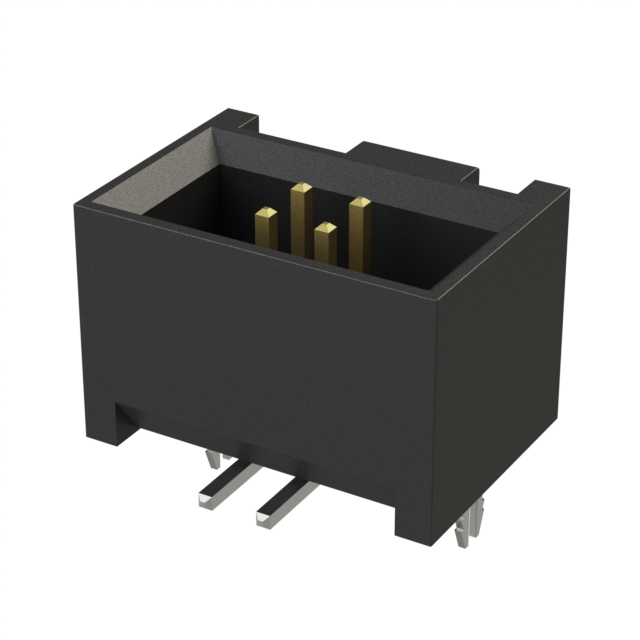

SHF-102-01-F-D-SM-LC
Or copy the link below:
- Mfr.Part #
- SHF-102-01-F-D-SM-LC
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 1.27MM
- Stock
- 42,866
- In Stock ：
- 42,866
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 4
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.050 1.27mm
- Insulation Height :
- 0.210 5.33mm
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Series :
- SHF
- Mounting Type :
- Surface Mount
- Contact Finish Thickness - Mating :
- 3.00μin 0.076μm
- Feature :
- Board Lock, Keying Slot
- Number of Rows :
- 2
- Insulation Color :
- Black
- Factory Lead Time :
- 3 Weeks
- Contact Type :
- Male Pin
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Termination :
- Solder
- Operating Temperature :
- -55°C~125°C
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Fastening Type :
- Push-Pull
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Style :
- Board to Cable/Wire
- Contact Material :
- Phosphor Bronze
- Contact Finish - Post :
- Tin
- Current Rating (Amps) :
- 3A
- Packaging :
- Bulk
- Contact Length - Mating :
- 0.120 3.05mm
- Datasheets
- SHF-102-01-F-D-SM-LC
SHF Series 2-Row Header Solder Phosphor Bronze Bulk Surface Mount Gold Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.210 5.33mm Height
SHF-102-01-F-D-SM-LC Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the SHF Series.In many ways, its Board Lock, Keying Slot feature makes it more powerful.In this case, the device operates at -55°C~125°C Operating Temperature.
SHF-102-01-F-D-SM-LC Features
SHF series
SHF-102-01-F-D-SM-LC Applications
There are a lot of Samtec Inc.
SHF-102-01-F-D-SM-LC Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
