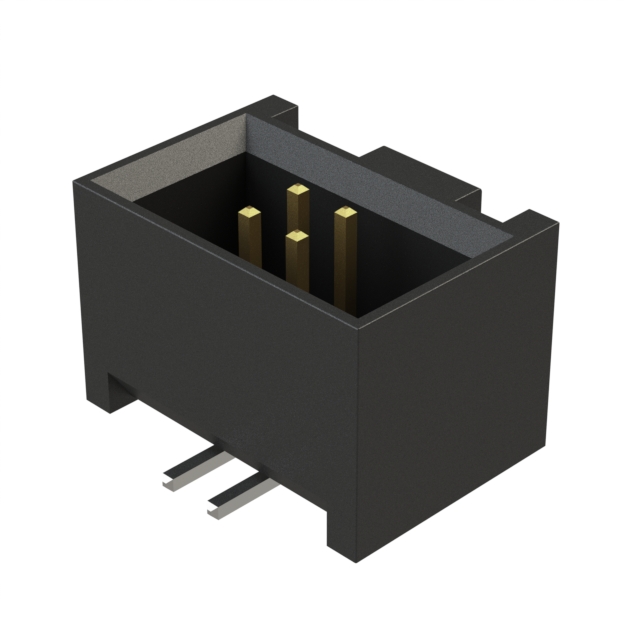

SHF-102-01-F-D-SM
Or copy the link below:
- Mfr.Part #
- SHF-102-01-F-D-SM
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 1.27MM
- Stock
- 28,275
- In Stock ：
- 28,275
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Current Rating (Amps) :
- 3A
- Mounting Type :
- Surface Mount
- Contact Length - Mating :
- 0.120 3.05mm
- Series :
- SHF
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Packaging :
- Bulk
- MIL Conformance :
- No
- Contact Material :
- Phosphor Bronze
- Option :
- GENERAL PURPOSE
- Pitch - Mating :
- 0.050 1.27mm
- Contact Finish Thickness - Mating :
- 3.00μin 0.076μm
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Number of Rows :
- 2
- Filter Feature :
- No
- Insulation Height :
- 0.210 5.33mm
- Style :
- Board to Cable/Wire
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 3 Weeks
- Operating Temperature :
- -55°C~125°C
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Total Number of Contacts :
- 4
- DIN Conformance :
- No
- JESD-609 Code :
- e4
- Number of Positions Loaded :
- All
- Insulation Color :
- Black
- Number of Positions :
- 4
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Fastening Type :
- Push-Pull
- Feature :
- Keying Slot
- IEC Conformance :
- No
- Datasheets
- SHF-102-01-F-D-SM
SHF Series 2-Row Header Solder Phosphor Bronze Bulk Surface Mount Gold Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.210 5.33mm Height
SHF-102-01-F-D-SM Overview
This product is packaged in a Header carton.Surface Mount is the mounting type for the device.The product is packaged in a Bulk case.It's part of the SHF Series.Many aspects of its Keying Slot feature increase its effectiveness.It runs at -55°C~125°C Operating Temperature.
SHF-102-01-F-D-SM Features
SHF series
SHF-102-01-F-D-SM Applications
There are a lot of Samtec Inc.
SHF-102-01-F-D-SM Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
