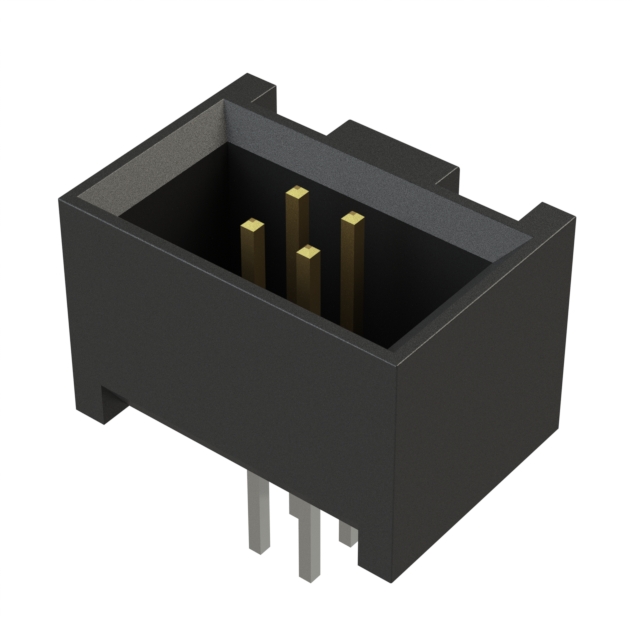

SHF-102-01-S-D-TH
Or copy the link below:
- Mfr.Part #
- SHF-102-01-S-D-TH
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 1.27MM
- Stock
- 27,726
- In Stock ：
- 27,726
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Factory Lead Time :
- 3 Weeks
- Mixed Contacts :
- No
- JESD-609 Code :
- e4
- Packaging :
- Bulk
- Series :
- SHF
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Connector Type :
- Header
- IEC Conformance :
- No
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.210 5.33mm
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Feature :
- Keying Slot
- Contact Shape :
- Square
- Operating Temperature :
- -55°C~125°C
- Insulation Color :
- Black
- Contact Material :
- Phosphor Bronze
- Contact Length - Mating :
- 0.120 3.05mm
- Contact Type :
- Male Pin
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 3A
- Number of Positions :
- 4
- Contact Finish - Mating :
- Gold
- DIN Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.075 1.91mm
- RoHS Status :
- ROHS3 Compliant
- Pitch - Mating :
- 0.050 1.27mm
- ECCN Code :
- EAR99
- Fastening Type :
- Push-Pull
- Datasheets
- SHF-102-01-S-D-TH
SHF Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.210 5.33mm Height
SHF-102-01-S-D-TH Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the SHF Series of products.A number of features make it more powerful because of its Keying Slot feature.There is no operating temperature for the device.
SHF-102-01-S-D-TH Features
SHF series
SHF-102-01-S-D-TH Applications
There are a lot of Samtec Inc.
SHF-102-01-S-D-TH Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
