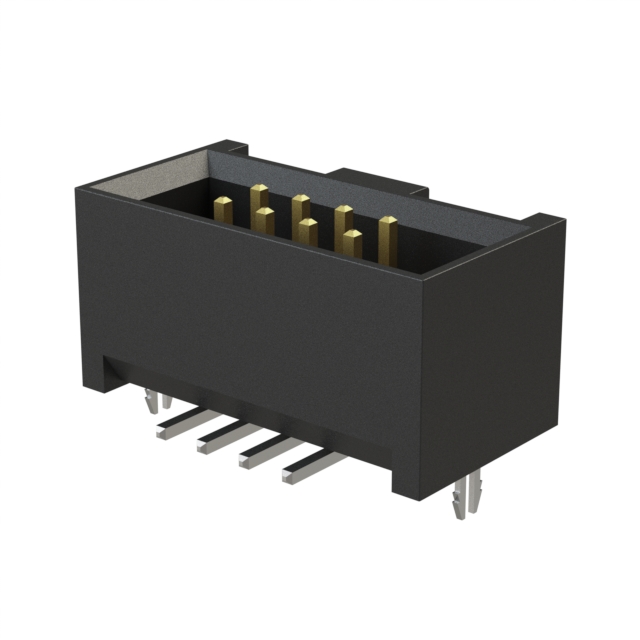

SHF-104-01-L-D-SM-LC
Or copy the link below:
- Mfr.Part #
- SHF-104-01-L-D-SM-LC
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 1.27MM
- Stock
- 34,056
- In Stock ：
- 34,056
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Radiation Hardening :
- No
- Contact Material :
- Phosphor Bronze
- Operating Temperature :
- -55°C~125°C
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 2
- Connector Type :
- Header
- Fastening Type :
- Push-Pull
- Series :
- SHF
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- 3A
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Post :
- Tin
- Mounting Type :
- Surface Mount
- Gender :
- Male
- Termination :
- Solder
- Contact Shape :
- Square
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Feature :
- Board Lock, Keying Slot, Pick and Place
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.210 5.33mm
- Number of Positions :
- 8
- Pitch - Mating :
- 0.050 1.27mm
- Contact Length - Mating :
- 0.120 3.05mm
- Packaging :
- Tape and Reel (TR)
- Datasheets
- SHF-104-01-L-D-SM-LC
SHF Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 8-Position Board to Cable/Wire 0.210 5.33mm Height
SHF-104-01-L-D-SM-LC-K-TR Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number SHF belongs to the SHF Series.In many ways, it is more powerful due to its Board Lock, Keying Slot, Pick and Place feature.This device operates at a temperature of -55°C~125°C.
SHF-104-01-L-D-SM-LC-K-TR Features
SHF series
SHF-104-01-L-D-SM-LC-K-TR Applications
There are a lot of Samtec Inc.
SHF-104-01-L-D-SM-LC-K-TR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
