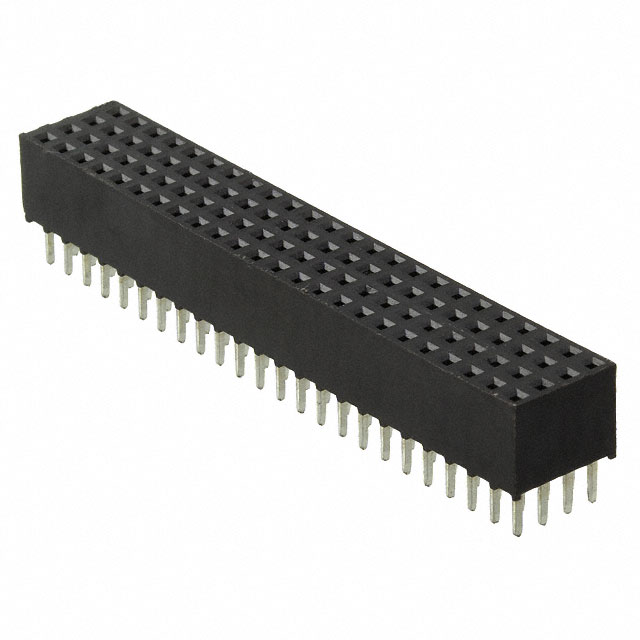

PPRN244EFCN
Or copy the link below:
- Mfr.Part #
- PPRN244EFCN
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 96POS 0.079 GOLD PCB
- Stock
- 10,347
- In Stock ：
- 10,347
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Number Of PCB Rows :
- 4
- Connector Type :
- Header
- Contact Resistance :
- 20mOhm
- Insulation Resistance :
- 5000000000Ohm
- Published :
- 2000
- Reference Standard :
- UL, CSA
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Mating :
- 20.0μin 0.51μm
- Contact Shape :
- Square
- Gender :
- FEMALE
- PCB Contact Row Spacing :
- 2.0066 mm
- Width :
- 8mm
- Operating Temperature :
- -40°C~105°C
- Contact Material :
- Phosphor Bronze
- Lead Pitch :
- 2mm
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Material :
- Polyester
- Body Breadth :
- 0.315 inch
- Mating Contact Pitch :
- 0.079 inch
- Length :
- 48.4mm
- Contact Finish - Mating :
- Gold
- Reliability :
- COMMERCIAL
- Mount :
- Through Hole
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Finish - Post :
- Tin
- Height :
- 6.3mm
- Lead Free :
- Contains Lead
- Insulation Height :
- 0.250 6.35mm
- Contact Type :
- Forked
- Number of Positions Loaded :
- All
- Number of Conductors :
- ONE
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Additional Feature :
- NONE
- Housing Material :
- Plastic
- Number of Positions :
- 96
- Contact Length - Post :
- 0.094 2.40mm
- Pitch - Mating :
- 0.079 2.00mm
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 2A
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Style :
- Board to Board
- RoHS Status :
- Non-RoHS Compliant
- Insulation Color :
- Black
- ECCN Code :
- EAR99
- Number of Rows :
- 4
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Terminal Pitch :
- 2.0066mm
- Datasheets
- PPRN244EFCN
PPRN244EFCN Documents
4 Rows Header Solder Phosphor Bronze Through Hole Bulk Gold Polyester 96 Positions Forked
PPRN244EFCN Overview
The product comes in a package of Header.Through Hole is the mount type.Bulk cases are used to package the product.Also, there's NONE, to name a few.There's a Through Hole on the part.Operating temperature is -40°C~105°C.
PPRN244EFCN Features
PPRN244EFCN Applications
There are a lot of Sullins Connector Solutions
PPRN244EFCN Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
