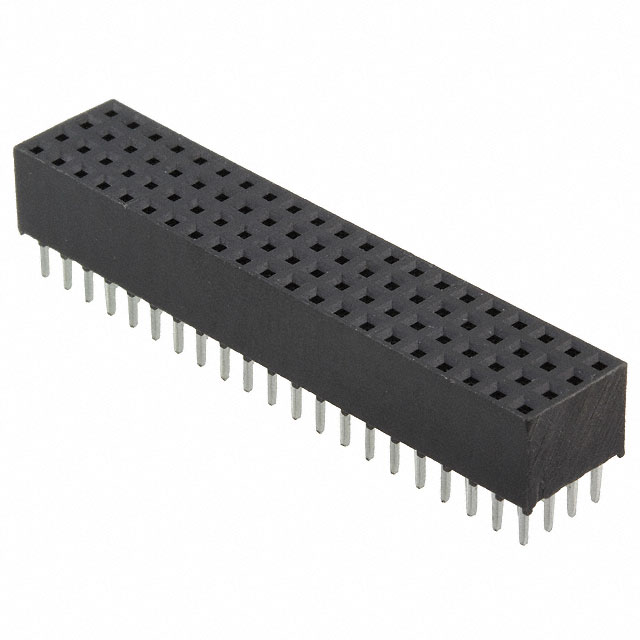

PPRN214EFCN
Or copy the link below:
- Mfr.Part #
- PPRN214EFCN
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 84POS 0.079 GOLD PCB
- Stock
- 3,332
- In Stock ：
- 3,332
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Termination :
- Solder
- Terminal Pitch :
- 2.0066mm
- Style :
- Board to Board
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Resistance :
- 5000000000Ohm
- ECCN Code :
- EAR99
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~105°C
- Gender :
- FEMALE
- Lead Pitch :
- 2mm
- Published :
- 2000
- Number of Rows :
- 4
- Contact Type :
- Forked
- Packaging :
- Bulk
- PCB Contact Pattern :
- RECTANGULAR
- Body Breadth :
- 0.315 inch
- Connector Type :
- Header
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Contact Resistance :
- 20mOhm
- Contact Length - Post :
- 0.094 2.40mm
- Number of Positions :
- 84
- Housing Material :
- Plastic
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyester
- RoHS Status :
- Non-RoHS Compliant
- Length :
- 42.4mm
- Insulation Color :
- Black
- Width :
- 8mm
- Contact Finish Thickness - Mating :
- 20.0μin 0.51μm
- Mating Contact Pitch :
- 0.079 inch
- Number Of PCB Rows :
- 4
- Pitch - Mating :
- 0.079 2.00mm
- Contact Material :
- Phosphor Bronze
- Height :
- 6.3mm
- Current Rating (Amps) :
- 2A
- PCB Contact Row Spacing :
- 2.0066 mm
- Contact Finish - Mating :
- Gold
- Lead Free :
- Contains Lead
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.250 6.35mm
- Fastening Type :
- Push-Pull
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Number of Conductors :
- ONE
- Additional Feature :
- NONE
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Reference Standard :
- UL, CSA
- Reliability :
- COMMERCIAL
- Datasheets
- PPRN214EFCN
PPRN214EFCN Documents
4 Rows Header Solder Phosphor Bronze Through Hole Bulk Gold Polyester 84 Positions Forked
PPRN214EFCN Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.In addition, there are other features such as NONE, to mention only a few.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.
PPRN214EFCN Features
PPRN214EFCN Applications
There are a lot of Sullins Connector Solutions
PPRN214EFCN Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
