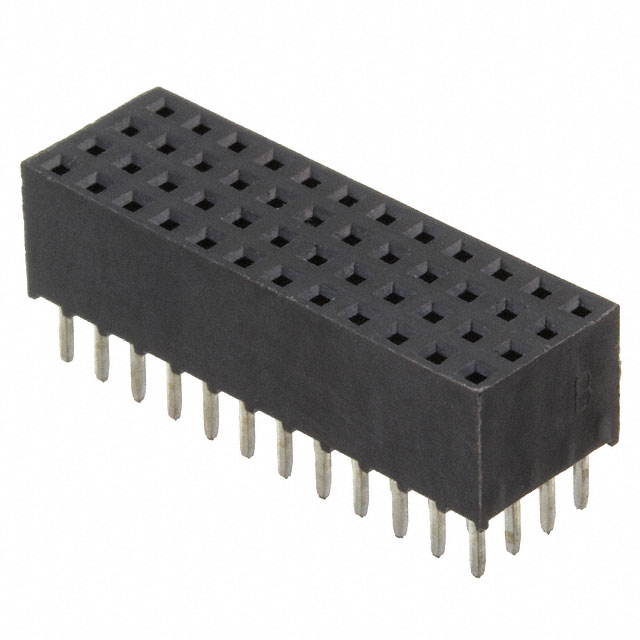

PPRN124EFCN

Share

Or copy the link below:

Mfr.Part #
PPRN124EFCN
Manufacturer
Sullins Connector Solutions
Package / Case
Datasheet
Download
Description
CONN HDR 48POS 0.079 GOLD PCB
Stock
27,187
In Stock :
27,187

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sullins Connector Solutions
Product Category :
Headers, Receptacles, Female Sockets
Contact Material :
Phosphor Bronze
Number of Positions Loaded :
All
Row Spacing - Mating :
0.079 (2.00mm)
PCB Contact Pattern :
RECTANGULAR
Dielectric Withstanding Voltage :
500VAC V
Contact Finish - Mating :
Gold
Terminal Pitch :
2.0066mm
Additional Feature :
NONE
RoHS Status :
Non-RoHS Compliant
Mating Contact Pitch :
0.079 inch
Reliability :
COMMERCIAL
Number of Rows :
4
Pitch - Mating :
0.079 2.00mm
Insulation Material :
Polyester
Published :
2000
Insulation Resistance :
5000000000Ohm
PCB Contact Row Spacing :
2.0066 mm
Lead Pitch :
2mm
Number of Positions :
48
Width :
8mm
Termination :
Solder
Insulation Height :
0.250 6.35mm
Number of Conductors :
ONE
Height :
6.3mm
Number Of PCB Rows :
4
Body Breadth :
0.315 inch
Gender :
FEMALE
Contact Finish Thickness - Mating :
20.0μin 0.51μm
Mount :
Through Hole
Moisture Sensitivity Level (MSL) :
Not Applicable
Contact Resistance :
20mOhm
Operating Temperature :
-40°C~105°C
ECCN Code :
EAR99
Current Rating (Amps) :
2A
Contact Finish - Post :
Tin
Contact Length - Post :
0.094 2.40mm
Packaging :
Bulk
Length :
24.4mm
Reference Standard :
UL, CSA
Contact Type :
Forked
Fastening Type :
Push-Pull
Contact Shape :
Square
Housing Material :
Plastic
Mounting Type :
Through Hole
Style :
Board to Board
Connector Type :
Header
Insulation Color :
Black
Lead Free :
Contains Lead
Material Flammability Rating :
UL94 V-0
Introducing Headers, Receptacles, Female Sockets Sullins Connector Solutions PPRN124EFCN from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~105°C, Mounting Type:Through Hole, PPRN124EFCN pinout, PPRN124EFCN datasheet PDF, PPRN124EFCN amp .Beyond Headers, Receptacles, Female Sockets Sullins Connector Solutions PPRN124EFCN ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

Sullins Connector Solutions PPRN124EFCN


4 Rows Header Solder Phosphor Bronze Through Hole Bulk Gold Polyester 48 Positions Forked

PPRN124EFCN Overview


Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.Moreover, there are a number of other features, including NONE, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.

PPRN124EFCN Features




PPRN124EFCN Applications


There are a lot of Sullins Connector Solutions
PPRN124EFCN Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
