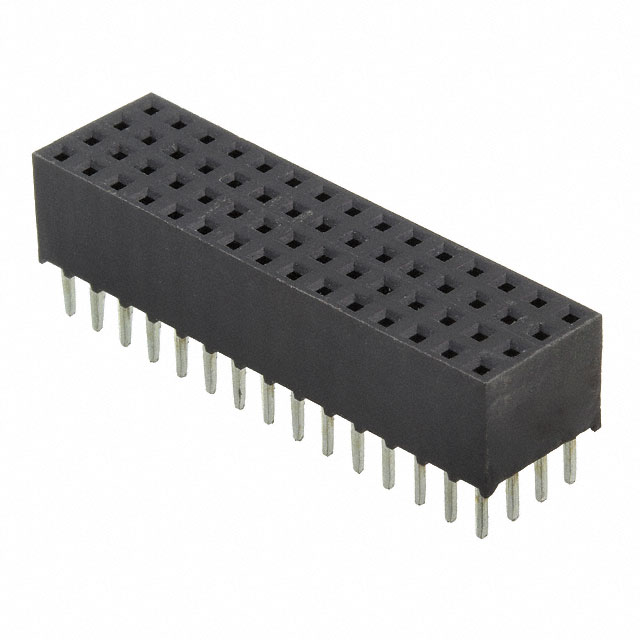

PPRN154EFCN
Or copy the link below:
- Mfr.Part #
- PPRN154EFCN
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 60POS 0.079 GOLD PCB
- Stock
- 37,352
- In Stock ：
- 37,352
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Reference Standard :
- UL, CSA
- Additional Feature :
- NONE
- Contact Material :
- Phosphor Bronze
- Contact Resistance :
- 20mOhm
- Gender :
- FEMALE
- Fastening Type :
- Push-Pull
- ECCN Code :
- EAR99
- Mount :
- Through Hole
- Length :
- 30.4mm
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Shape :
- Square
- Contact Type :
- Forked
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Insulation Height :
- 0.250 6.35mm
- Lead Pitch :
- 2mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Style :
- Board to Board
- Pitch - Mating :
- 0.079 2.00mm
- Body Breadth :
- 0.315 inch
- Connector Type :
- Header
- RoHS Status :
- Non-RoHS Compliant
- Number of Conductors :
- ONE
- Housing Material :
- Plastic
- PCB Contact Row Spacing :
- 2.0066 mm
- Terminal Pitch :
- 2.0066mm
- Width :
- 8mm
- Contact Finish Thickness - Mating :
- 20.0μin 0.51μm
- Insulation Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Contains Lead
- Published :
- 2000
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -40°C~105°C
- Reliability :
- COMMERCIAL
- Number of Rows :
- 4
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions :
- 60
- Insulation Resistance :
- 5000000000Ohm
- Mating Contact Pitch :
- 0.079 inch
- Height :
- 6.3mm
- Number Of PCB Rows :
- 4
- Termination :
- Solder
- Current Rating (Amps) :
- 2A
- Insulation Material :
- Polyester
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.094 2.40mm
- Mounting Type :
- Through Hole
- Datasheets
- PPRN154EFCN
PPRN154EFCN Documents
4 Rows Header Solder Phosphor Bronze Through Hole Bulk Gold Polyester 60 Positions Forked
PPRN154EFCN Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.Additionally, there are other features, such as NONE.Through Hole mounts the part.There is no operating temperature for the device.
PPRN154EFCN Features
PPRN154EFCN Applications
There are a lot of Sullins Connector Solutions
PPRN154EFCN Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
