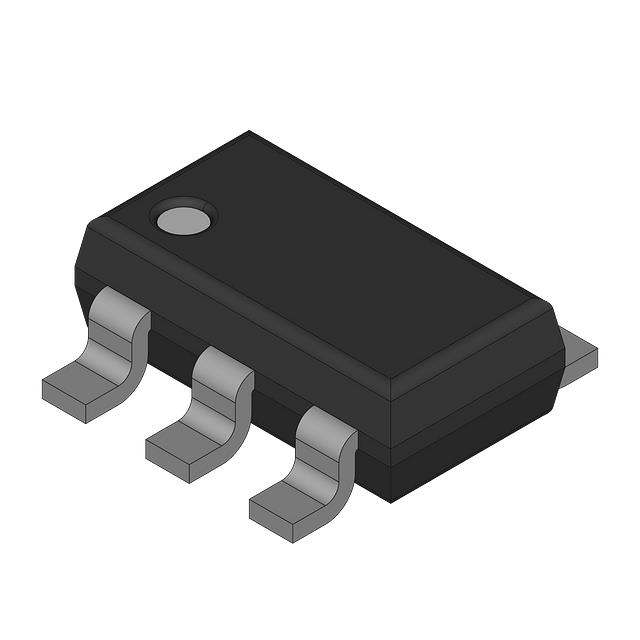

PMN27XPEAX

Manufacturer :

Nexperia

Product Category :

Transistors - Bipolar (BJT) - Single

Continuous Drain Current (ID) :

4.4A

Factory Lead Time :

6 Weeks

Transistor Element Material :

SILICON

Package / Case :

SC-74, SOT-457

Reference Standard :

AEC-Q101; IEC-60134

DS Breakdown Voltage-Min :

20V

Current - Continuous Drain (Id) @ 25°C :

4.4A Ta

Vgs(th) (Max) @ Id :

1.25V @ 250μA

Configuration :

SINGLE WITH BUILT-IN DIODE

Drain to Source Voltage (Vdss) :

20V

Transistor Application :

SWITCHING

Input Capacitance (Ciss) (Max) @ Vds :

1770pF @ 10V

Rds On (Max) @ Id, Vgs :

30m Ω @ 3A, 4.5V

Number of Terminations :

6

Terminal Position :

Dual

Pin Count :

6

Operating Temperature :

-55°C~150°C TJ

Published :

2014

JESD-30 Code :

R-PDSO-G6

Mount :

Surface Mount

RoHS Status :

RoHS Compliant

FET Type :

P-Channel

Drive Voltage (Max Rds On,Min Rds On) :

2.5V 4.5V

Vgs (Max) :

±12V

Gate Charge (Qg) (Max) @ Vgs :

22.5nC @ 4.5V

Terminal Form :

Gull wing

Drain-source On Resistance-Max :

0.03Ohm

Operating Mode :

ENHANCEMENT MODE

Series :

Automotive, AEC-Q101

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power Dissipation-Max :

530mW Ta 8.33W Tc

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Number of Elements :

6
