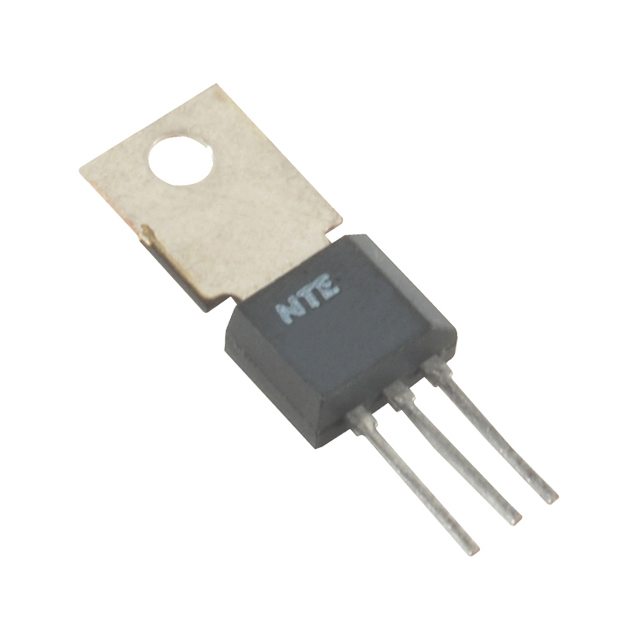

NTE186A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Power Dissipation-Max (Abs) :

10 W

Collector Current-Max (IC) :

3 A

Polarity/Channel Type :

NPN

Surface Mount :

No

Number of Elements :

1

Terminal Position :

Single

Collector-Emitter Voltage-Max :

40 V

Configuration :

Single

ECCN Code :

EAR99

JEDEC-95 Code :

TO-202

Transistor Element Material :

SILICON

DC Current Gain-Min (hFE) :

50

Current - Collector Cutoff (Max) :

100μA

JESD-30 Code :

R-PSFM-T3

Terminal Form :

THROUGH-HOLE

DC Current Gain (hFE) (Min) @ Ic, Vce :

50 @ 1A, 5V

Power - Max :

10 W

Operating Temperature :

150°C (TJ)

Voltage - Collector Emitter Breakdown (Max) :

40 V

Case Connection :

COLLECTOR

Series :

-

Transistor Type :

NPN

Qualification Status :

Not Qualified

Package / Case :

TO-202 Long Tab

Frequency - Transition :

150MHz

Product Status :

Active

Power Dissipation Ambient-Max :

10 W

Transistor Application :

AMPLIFIER

Manufacturer :

NTE Electronics

Package :

Bag

Current - Collector (Ic) (Max) :

3 A

Reach Compliance Code :

Unknown

Pin Count :

3

Supplier Device Package :

TO-202M

Vce Saturation (Max) @ Ib, Ic :

1V @ 200mA, 2A

Package Shape :

RECTANGULAR

Subcategory :

Other Transistors

Mounting Type :

Through Hole

Number of Terminals :

3
