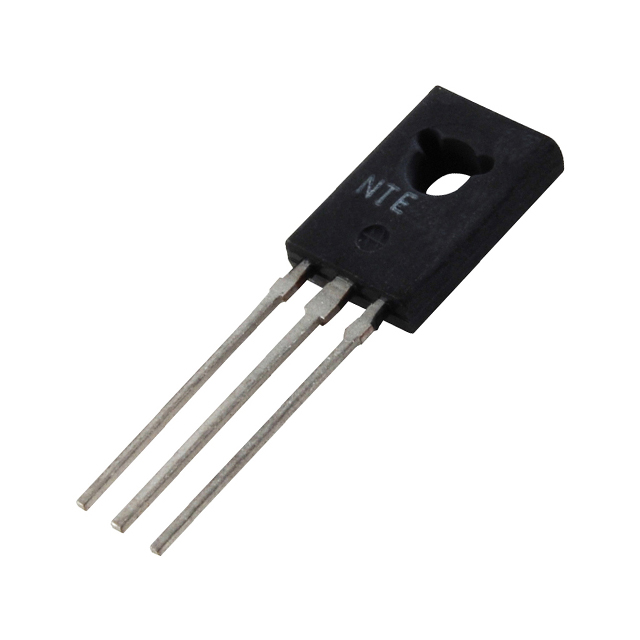

NTE185

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Type :

PNP

Frequency - Transition :

2MHz

JESD-30 Code :

R-PSFM-W3

Qualification Status :

Not Qualified

Reach Compliance Code :

Unknown

Subcategory :

Other Transistors

Terminal Position :

Single

Supplier Device Package :

TO-126

Vce Saturation (Max) @ Ib, Ic :

1.4V @ 1A, 4A

Polarity/Channel Type :

PNP

JEDEC-95 Code :

TO-126

ECCN Code :

EAR99

Power - Max :

40 W

DC Current Gain (hFE) (Min) @ Ic, Vce :

20 @ 1.5A, 2V

Product Status :

Active

Number of Elements :

1

Collector Current-Max (IC) :

4 A

Package / Case :

TO-225AA, TO-126-3

Power Dissipation Ambient-Max :

40 W

Mounting Type :

Through Hole

Series :

-

Operating Temperature :

-65°C ~ 150°C (TJ)

Surface Mount :

No

Package Shape :

RECTANGULAR

Power Dissipation-Max (Abs) :

40 W

DC Current Gain-Min (hFE) :

7

Transistor Element Material :

SILICON

Collector-Emitter Voltage-Max :

80 V

Manufacturer :

NTE Electronics

Transistor Application :

SWITCHING

Number of Terminals :

3

Terminal Form :

Wire

Package :

Bag

Configuration :

Single

Current - Collector Cutoff (Max) :

1mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Collector (Ic) (Max) :

4 A

Voltage - Collector Emitter Breakdown (Max) :

80 V
