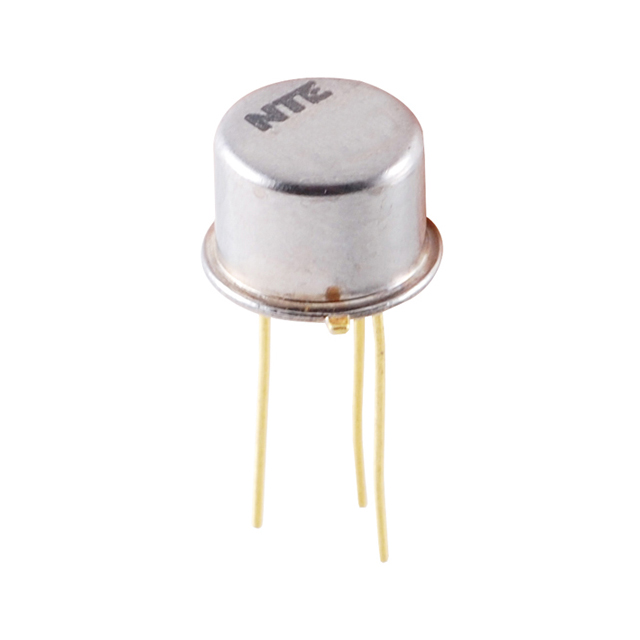

NTE176

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Collector-Emitter Voltage-Max :

25 V

Power - Max :

6 W

JESD-30 Code :

O-MBCY-W3

Terminal Form :

Wire

Rad Hardened :

No

Subcategory :

Other Transistors

Package / Case :

TO-205AD, TO-39-3 Metal Can

Operating Temp Range :

-55C to 85C

Frequency :

1.2(MHz)

Emitter-Base Voltage :

10(V)

Operating Temperature Classification :

Industrial

Operating Temperature :

85°C (TJ)

Surface Mount :

No

Vce Saturation (Max) @ Ib, Ic :

250mV @ 200mA, 2A

Supplier Device Package :

TO-39

Qualification Status :

Not Qualified

ECCN Code :

EAR99

Package Type :

TO-39

Transistor Type :

PNP

DC Current Gain-Min (hFE) :

40

Current - Collector (Ic) (Max) :

2 A

Collector Current-Max (IC) :

2 A

Pin Count :

3

Product Status :

Active

Series :

-

JEDEC-95 Code :

TO-39

Transistor Element Material :

GERMANIUM

Mounting :

Through Hole

Number of Terminals :

3

Transistor Polarity :

PNP

Reach Compliance Code :

Unknown

Current - Collector Cutoff (Max) :

10mA

Power Dissipation :

6(W)

Case Connection :

COLLECTOR

Power Dissipation Ambient-Max :

6 W

Category :

Bipolar Power

Transistor Application :

AMPLIFIER

Power Dissipation-Max (Abs) :

6 W

Polarity/Channel Type :

PNP

Frequency - Transition :

1.2MHz

Collector-Base Voltage :

20(V)

Package Shape :

Round

Manufacturer :

NTE Electronics

Number of Elements :

1

Collector Current (DC) :

2(A)

DC Current Gain (hFE) (Min) @ Ic, Vce :

40 @ 2A, 0V

Package :

Bag

Configuration :

Single

Output Power :

Not Required(W)

Mounting Type :

Through Hole

Terminal Position :

BOTTOM
