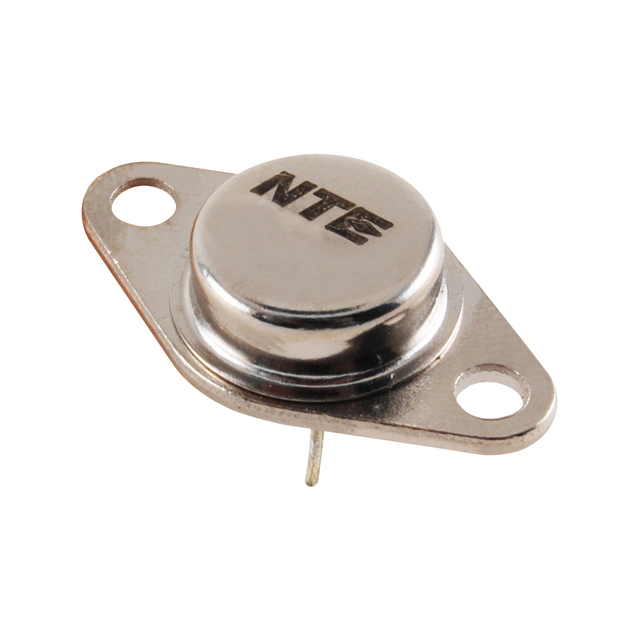

NTE175

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

REACH SVHC :

Unknown

Temperature Grade :

Other

Reach Compliance Code :

Unknown

Length :

152.4 mm

Consumer IC Type :

VERTICAL DEFLECTION IC

Max Operating Temperature :

60 °C

Qualification Status :

Not Qualified

HTS Code :

8542.39.00.01

Min Supply Voltage :

10 V

RoHS :

Compliant

Package Shape :

RECTANGULAR

Weight :

7.257478 g

Supply Voltage-Min (Vsup) :

10 V

Number of Terminals :

9

Blanking Output :

No

Terminal Position :

Single

Pin Count :

9

Max Supply Voltage :

40 V

Height :

12.7 mm

Number of Pins :

9

Application :

TV; MONITOR

Min Operating Temperature :

-25 °C

Supply Voltage-Max (Vsup) :

40 V

ECCN Code :

EAR99

Number of Functions :

1

Surface Mount :

No

Width :

76.2 mm

JESD-30 Code :

R-PSFM-T9

Terminal Form :

THROUGH-HOLE
