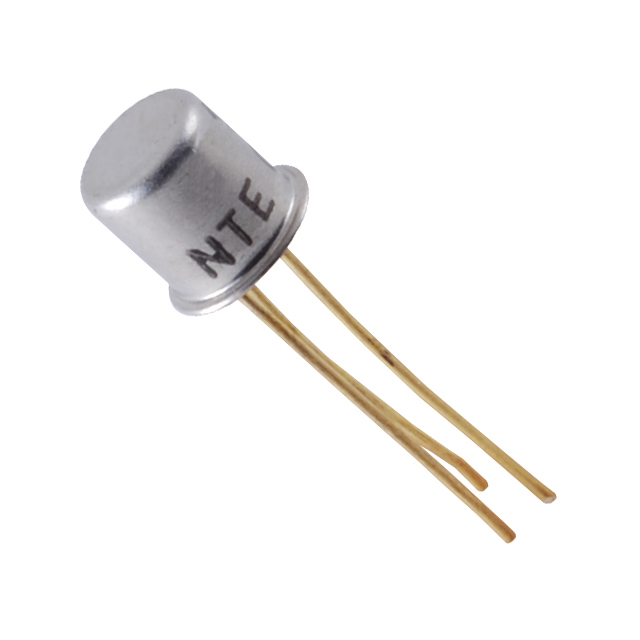

NTE159M

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package / Case :

TO-206AA, TO-18-3 Metal Can

Surface Mount :

No

Product Status :

Active

Qualification Status :

Not Qualified

Power Dissipation-Max (Abs) :

0.4 W

Collector Current-Max (IC) :

0.6 A

Polarity/Channel Type :

PNP

Series :

-

Reach Compliance Code :

Unknown

Package Shape :

Round

Transistor Element Material :

SILICON

Transistor Application :

AMPLIFIER

JEDEC-95 Code :

TO-18

DC Current Gain-Min (hFE) :

100

Power - Max :

1.8 W

Mounting Type :

Through Hole

Voltage - Collector Emitter Breakdown (Max) :

60 V

Supplier Device Package :

TO-18

JESD-30 Code :

O-MBCY-W3

Operating Temperature :

-65°C ~ 200°C (TJ)

Subcategory :

Other Transistors

Current - Collector Cutoff (Max) :

50nA

Terminal Position :

BOTTOM

Configuration :

Single

Transistor Type :

PNP

Manufacturer :

NTE Electronics

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 150mA, 10V

Pin Count :

3

Number of Elements :

1

Number of Terminals :

3

Current - Collector (Ic) (Max) :

600 mA

Terminal Form :

Wire

Vce Saturation (Max) @ Ib, Ic :

1.6V @ 50mA, 500mA

Package :

Bag

Frequency - Transition :

200MHz

Additional Feature :

LOW NOISE

HTS Code :

8541.21.00.95
