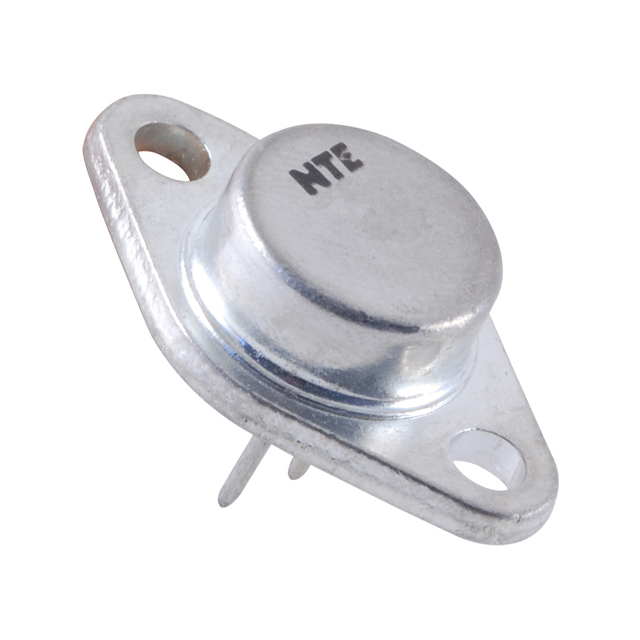

NTE155
- Mfr.Part #
- NTE155
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-213AA, TO-66-2
- Datasheet
- Download
- Description
- TRANS NPN 32V 1A TO66
- Stock
- 4,368
- In Stock :
- 4,368
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Collector-Emitter Voltage-Max :
- 20 V
- Series :
- -
- Frequency - Transition :
- -
- Supplier Device Package :
- TO-66
- Number of Elements :
- 1
- Power - Max :
- 6 W
- Product Status :
- Active
- Terminal Form :
- PIN/PEG
- Number of Terminals :
- 2
- Package :
- Bag
- Terminal Position :
- BOTTOM
- Vce Saturation (Max) @ Ib, Ic :
- 80mV @ 100mA, 1A
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 36 @ 1A, 0V
- Current - Collector Cutoff (Max) :
- 1mA
- Configuration :
- Single
- JESD-30 Code :
- O-MBFM-P2
- Surface Mount :
- No
- HTS Code :
- 8541.29.00.95
- Package / Case :
- TO-213AA, TO-66-2
- Voltage - Collector Emitter Breakdown (Max) :
- 32 V
- Mounting Type :
- Through Hole
- Manufacturer :
- NTE Electronics
- Transistor Type :
- NPN
- JEDEC-95 Code :
- TO-66
- ECCN Code :
- EAR99
- Transistor Element Material :
- GERMANIUM
- Polarity/Channel Type :
- NPN
- Case Connection :
- COLLECTOR
- Operating Temperature :
- 90°C (TJ)
- Qualification Status :
- Not Qualified
- Package Shape :
- Round
- Collector Current-Max (IC) :
- 1 A
- Power Dissipation-Max (Abs) :
- 7.5 W
- Transistor Application :
- AMPLIFIER
- Power Dissipation Ambient-Max :
- 7.5 W
- DC Current Gain-Min (hFE) :
- 36
- Subcategory :
- Other Transistors
- Reach Compliance Code :
- Unknown
- Current - Collector (Ic) (Max) :
- 1 A
- Datasheets
- NTE155

NPN 90°C (TJ) 1mA 1 Elements GERMANIUM NPN TO-213AA, TO-66-2 Through Hole
NTE155 Overview
As dc = Ic/Ib, DC current gain is the ratio of base current to collector current, and DC current gain for this device is 36 @ 1A, 0V.When VCE saturation is 80mV @ 100mA, 1A, transistor means Ic has reached transistors maximum value (saturated).Supplier package TO-66 contains the product.Voltage maximal between collector and emitter is set to 20 V.The device has a 32 V maximal voltage - Collector Emitter Breakdown.
NTE155 Features
the DC current gain for this device is 36 @ 1A, 0V
the vce saturation(Max) is 80mV @ 100mA, 1A
the supplier device package of TO-66
NTE155 Applications
There are a lot of NTE Electronics, Inc
NTE155 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
