MHR-34-HUAL

Share

Or copy the link below:

Mfr.Part #
MHR-34-HUAL
Manufacturer
Adam Tech
Package / Case
Datasheet
Download
Description
CONN HEADER R/A 34POS 2.54MM
Stock
12
In Stock :
12

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Adam Tech
Product Category :
Headers, Male Pins
Contact Material :
Brass
Insulation Material :
Polybutylene Terephthalate (PBT)
Connector Type :
Header
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mounting Option 2 :
LOCKING
Packaging :
Bulk
Additional Feature :
RoHS Compliant
Dielectric Withstanding Voltage :
1000VAC V
Pitch - Mating :
0.100 2.54mm
Rated Current (Signal) :
3A
Mounting Option 1 :
LATCH and EJECT
Number of Rows :
2
Contact Finish - Mating :
Gold
Insulation Resistance :
5000000000Ohm
Polarization Key :
POLARIZED HOUSING
Insulation Height :
0.331 8.40mm
Contact Type :
Male Pin
Body Depth :
0.66 inch
Mating Contact Pitch :
0.1 inch
Termination :
Solder
RoHS Status :
ROHS3 Compliant
Material Flammability Rating :
UL94 V-0
Number of Conductors :
ONE
Number of Positions Loaded :
All
Reference Standard :
UL, CSA
Insulation Color :
Black
Length - Termination :
0.157 inch
Factory Lead Time :
9 Weeks
Feature :
Keying Slot
Shrouding :
Shrouded - 4 Wall
Fastening Type :
Latch Lock/Eject Hooks, Long
Durability :
500 Cycles
Style :
Board to Cable/Wire
Contact Shape :
Square
Number Of PCB Rows :
2
Row Spacing - Mating :
0.100 (2.54mm)
Voltage - Rated :
250VAC
Series :
MHR
Current Rating :
3A
Mounting Type :
Through Hole, Right Angle
Number of Positions :
34
Contact Length - Post :
0.142 3.60mm
PCB Contact Pattern :
RECTANGULAR
Operating Temperature :
-55°C~105°C
Contact Finish Thickness - Mating :
Flash
Reliability :
COMMERCIAL
Datasheets
MHR-34-HUAL
Introducing Headers, Male Pins Adam Tech MHR-34-HUAL from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-55°C~105°C, MHR-34-HUAL pinout, MHR-34-HUAL datasheet PDF, MHR-34-HUAL amp .Beyond Headers, Male Pins Adam Tech MHR-34-HUAL ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

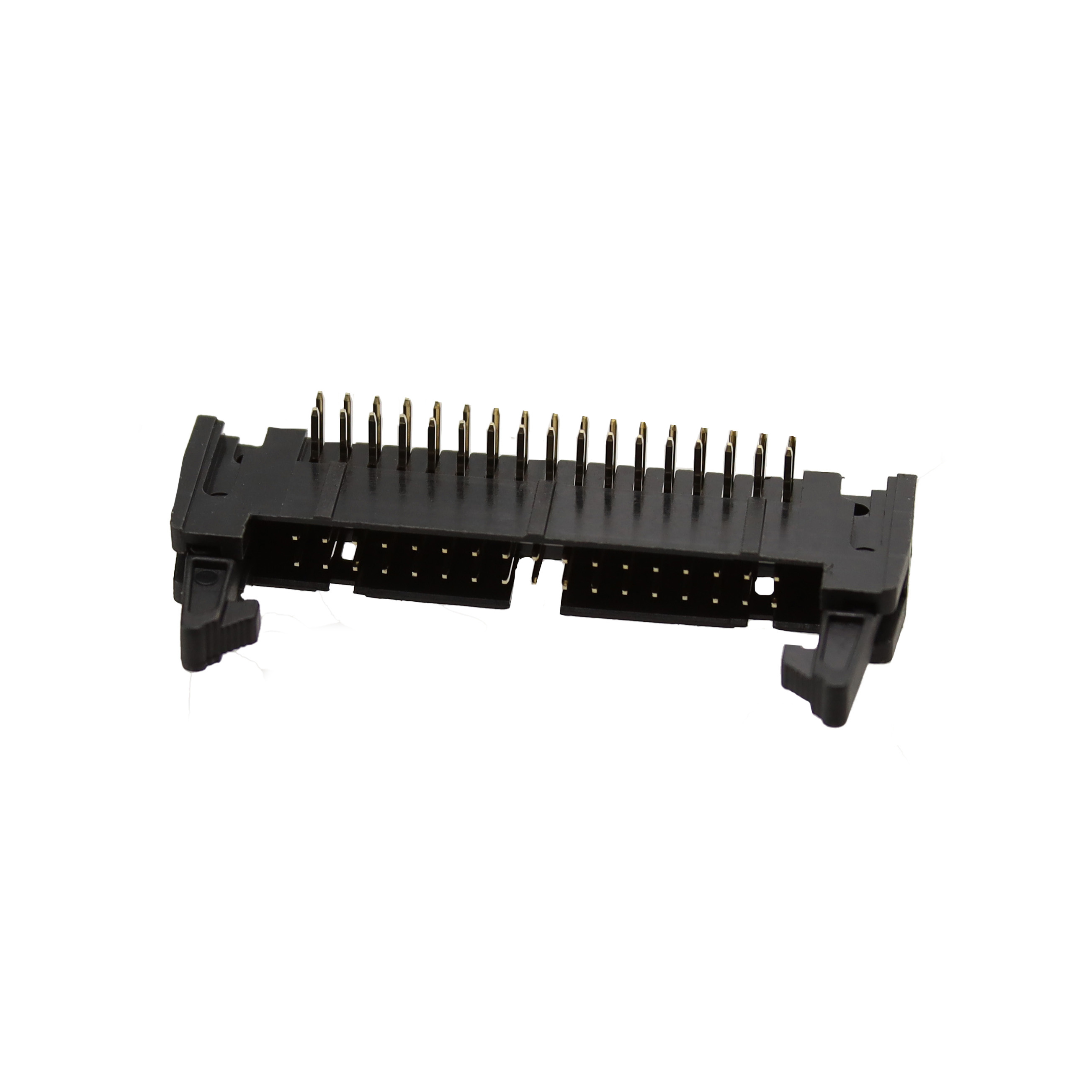

Adam Tech MHR-34-HUAL


MHR Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 34-Position Board to Cable/Wire 0.331 8.40mm Height

MHR-34-HUAL Overview


The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number MHR belongs to the MHR Series.Further, there are features such as ROHS COMPLIANT, to name only a few.In many ways, it is more powerful due to its Keying Slot feature.This device operates at a temperature of -55°C~105°C.

MHR-34-HUAL Features


MHR series


MHR-34-HUAL Applications


There are a lot of Adam Tech
MHR-34-HUAL Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
