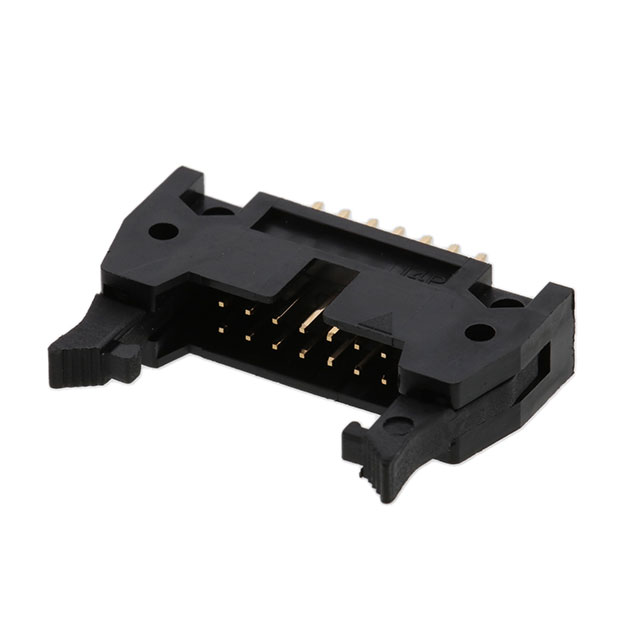

MHR-14-VUAL

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Contact Material :

Brass

Mounting Option 2 :

LOCKING

Pitch - Mating :

0.100 2.54mm

Connector Type :

Header

Mating Contact Pitch :

0.1 inch

Number of Positions :

14

Current Rating (Amps) :

1A

Additional Feature :

RoHS Compliant

Dielectric Withstanding Voltage :

1000VAC V

Style :

Board to Cable/Wire

Durability :

500 Cycles

Number of Positions Loaded :

All

Mounting Type :

Through Hole

Mounting Option 1 :

LATCH and EJECT

Insulation Color :

Black

Number of Rows :

2

Insulation Height :

0.661 16.79mm

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

MHR

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Feature :

Keying Slot, Mounting Flange

Row Spacing - Mating :

0.100 (2.54mm)

Number Of PCB Rows :

2

Contact Type :

Male Pin

Contact Finish - Mating :

Gold

Insulation Resistance :

5000000000Ohm

Body Length or Diameter :

1.46 inch

Length - Termination :

0.157 inch

Reliability :

COMMERCIAL

Operating Temperature :

-40°C~105°C

Body Depth :

0.677 inch

Reference Standard :

UL, CSA

Termination :

Solder

Body Breadth :

0.331 inch

Voltage - Rated :

250VAC

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness - Mating :

Flash

Number of Conductors :

ONE

Packaging :

Bulk

Contact Length - Post :

0.134 3.40mm

Fastening Type :

Latch Lock/Eject Hooks, Long

Shrouding :

Shrouded - 4 Wall

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Square

Factory Lead Time :

9 Weeks
