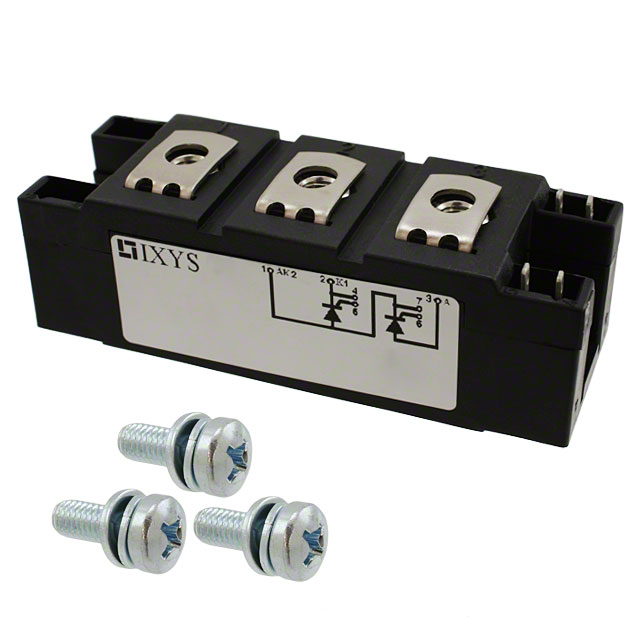

MCD162-18IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

Number of Pins :

5

RoHS Status :

ROHS3 Compliant

Reach Compliance Code :

Compliant

Published :

2009

Maximum Operating Temperature :

+ 100 C

Operating Temperature :

-40°C~125°C TJ

JESD-30 Code :

R-XUFM-X5

RMS On-state Current-Max :

300 A

Product :

Thyristor Power Modules

Base Part Number :

MC*162

Manufacturer :

IXYS

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

SINGLE WITH BUILT-IN SERIES DIODE

Number of SCRs, Diodes :

1 SCR, 1 Diode

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Style :

Screw Mounts

Terminal Form :

UNSPECIFIED

Repetitive Peak Reverse Voltage :

1800 V

Desc. of Screw Terminals :

A-K-AK

Packaging :

Bulk

Package / Case :

Y4-M6

Qualification Status :

Not Qualified

Current - Gate Trigger (Igt) (Max) :

150mA

Non-Repetitive Pk On-state Cur :

6000 A

Pbfree Code :

yes

Base Product Number :

MCD162

Reverse Voltage :

1.8kV

Minimum Operating Temperature :

- 40 C

Technology :

Si

Additional Feature :

UL RECOGNIZED

DC Gate Trigger Current-Max :

150 mA

Number of Elements :

1

Trigger Device Type :

SCR

RMS Current (Irms) :

300A

Current - On State (It (AV)) (Max) :

190A

RoHS :

Details

Structure :

Series Connection - SCR/Diode

Surface Mount :

No

Product Type :

Discrete Semiconductor Modules

Desc. of Quick-Connects :

G-GR

Vf - Forward Voltage :

1.03 V

Product Category :

Discrete Semiconductor Modules

On-State Current-Max :

181000A

Package :

Bulk

Terminal Position :

UPPER

Current - Hold (Ih) (Max) :

200mA

Product Status :

Active

Case Connection :

Isolated

Current - Non Rep. Surge 50, 60Hz (Itsm) :

6000A 6400A

Max Repetitive Reverse Voltage (Vrrm) :

1.8kV

Factory Lead Time :

24 Weeks

Radiation Hardening :

No

Repetitive Peak Off-state Voltage :

1800V

Current - On State (It (RMS)) (Max) :

300A

Brand :

IXYS

Type :

Phase Leg

Lead Free :

Lead Free

Voltage - Gate Trigger (Vgt) (Max) :

2.5V

Mount :

Chassis Mount, Screw

Series :

--

Hold Current :

200mA

Mounting Type :

Chassis Mount

Package Shape :

RECTANGULAR

Voltage - Off State :

1.8kV

Number of Terminals :

5

Number of Terminations :

5
