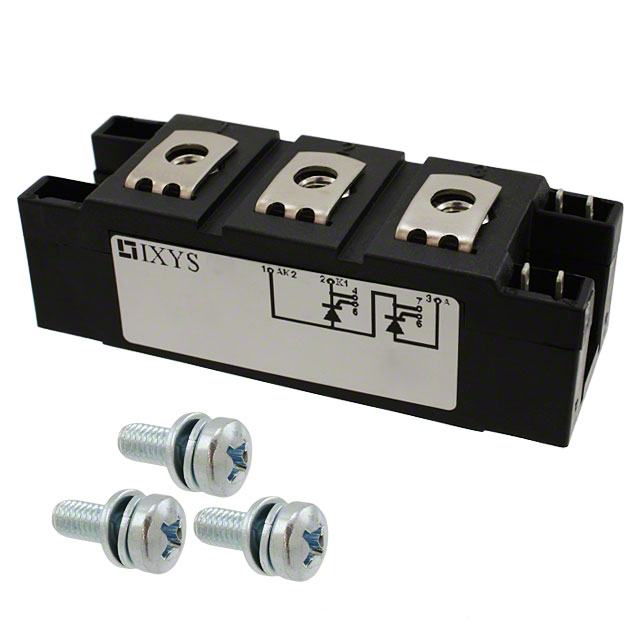

MCD162-16IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

RoHS :

Details

Pbfree Code :

yes

Desc. of Quick-Connects :

G-GR

Maximum Operating Temperature :

+125 °C

DC Gate Trigger Current-Max :

150 mA

Current - On State (It (AV)) (Max) :

190A

Minimum Operating Temperature :

-40 °C

Structure :

Series Connection - SCR/Diode

Surface Mount :

No

Terminal Form :

UNSPECIFIED

Published :

2000

Moisture Sensitivity Level (MSL) :

Not Applicable

Vf - Forward Voltage :

1.03 V

Current - Hold (Ih) (Max) :

200mA

Repetitive Peak Reverse Voltage :

1.6kV

Repetitive Peak Off-state Voltage :

1600V

Product :

Thyristor Power Modules

Height :

30mm

HTS Code :

8541.30.00.80

Number of Terminals :

5

Voltage - Off State :

1.6kV

Number of Elements :

1

On-State Current-Max :

181000A

Base Product Number :

MCD162

Configuration :

SINGLE WITH BUILT-IN SERIES DIODE

Desc. of Screw Terminals :

A-K-AK

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Case Connection :

Isolated

Product Category :

Discrete Semiconductor Modules

Packaging :

Bulk

Additional Feature :

UL RECOGNIZED

Non-Repetitive Pk On-state Cur :

6000 A

Voltage - Gate Trigger (Vgt) (Max) :

2.5V

Number of Pins :

5

Trigger Device Type :

SCR

RMS On-state Current-Max :

300 A

Series :

--

Hold Current :

200mA

JESD-30 Code :

R-XUFM-X5

Length :

94mm

RMS Current (Irms) :

300A

Package Type :

Y4 M6

Reverse Voltage :

1.6kV

Base Part Number :

MC*162

Reach Compliance Code :

Compliant

Number of SCRs, Diodes :

1 SCR, 1 Diode

Mount :

Chassis Mount, Panel, Screw

Brand :

IXYS

Mounting Type :

Chassis Mount

Product Status :

Active

Operating Temperature :

-40°C~125°C TJ

Width :

34mm

Mounting Style :

Screw Mounts

Factory Lead Time :

24 Weeks

Package :

Bulk

Manufacturer :

IXYS

Product Type :

Discrete Semiconductor Modules

Dimensions :

94 x 34 x 30mm

Technology :

Si

Type :

Phase Leg

Pin Count :

5

Current - Non Rep. Surge 50, 60Hz (Itsm) :

6000A 6400A

RoHS Status :

ROHS3 Compliant

Terminal Position :

UPPER

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Terminations :

5

Current - Gate Trigger (Igt) (Max) :

150mA

Qualification Status :

Not Qualified

Package Shape :

RECTANGULAR

Package / Case :

Y4-M6

Current - On State (It (RMS)) (Max) :

300A
