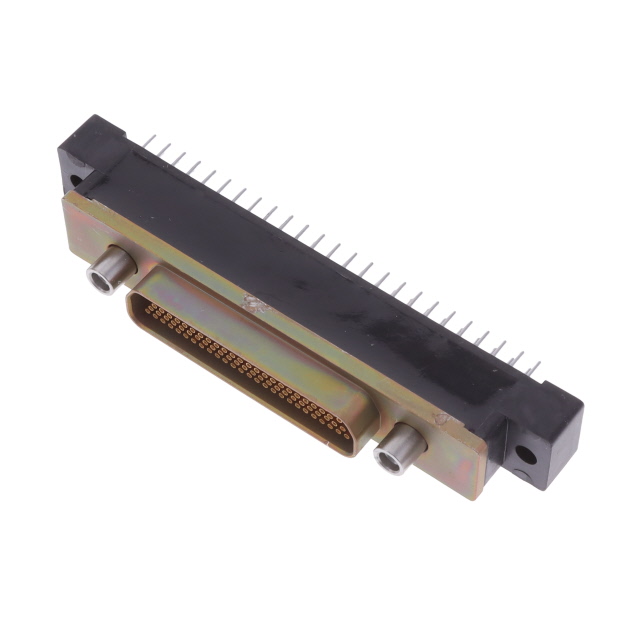

M83513/27-H01CP
Or copy the link below:
- Mfr.Part #
- M83513/27-H01CP
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 100 POS RCPT STRAIGHT PCB CD PLT
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Connector Type :
- Receptacle, Female Sockets
- Dielectric Material :
- Polyester, Glass Filled
- Features :
- -
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Operating Temperature :
- -55°C ~ 125°C
- Contact Type :
- Signal
- Contact Plating :
- Gold
- Series :
- Military, MIL-C-83513, M83513
- Shell Plating :
- Cadmium
- Insulation :
- Insulated
- Contact Finish :
- Gold
- Insulation Material :
- Glass Filled, Polyester
- Current Rating :
- 3 A
- Connector Style :
- D-Type, Micro-D
- Wire Gauge :
- -
- Contact Form :
- -
- Termination :
- Solder
- Type :
- Dura-Con High Reliability Connector
- Voltage Rating :
- 600 VAC
- Termination Style :
- Through Hole
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Ingress Protection :
- -
- Mounting Style :
- Board Mount
- Gender :
- FEMALE
- Material Flammability Rating :
- UL94 V-0
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.050 Row to Row
- Number of Positions :
- 100 Position
- Mounting Angle :
- Straight
- Number of Rows :
- 4 Row
- Package :
- Bag
- Color :
- -
- Product :
- Connectors
- Shell Size :
- H
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 3A
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Product Status :
- Active
- Base Product Number :
- M83513/27
- Shell Material :
- Aluminum Alloy
- Backset Spacing :
- -
- Contact Material :
- Copper
- Datasheets
- M83513/27-H01CP
