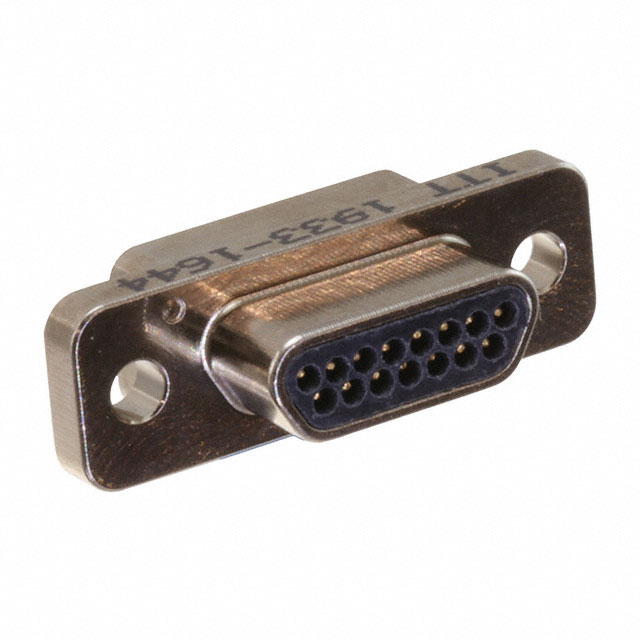

M83513/01-BN
Or copy the link below:
- Mfr.Part #
- M83513/01-BN
- Manufacturer
- ITT Cannon
- Package / Case
- SOD
- Datasheet
- Download
- Description
- MICRO 15 P SOD A174
- Stock
- 30,762
- In Stock ：
- 30,762
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Contact Style :
- RND PIN-SKT
- Connector Type :
- D MICROMINIATURE CONNECTOR
- Backset Spacing :
- -
- Contact Plating :
- Gold
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Durability :
- 500 Cycles
- Number of Positions :
- 15 Position
- Shell Finish :
- Nickel
- Termination :
- Solder
- Body/Shell Style :
- PLUG
- Series :
- M83513
- Number of Conductors :
- ONE
- Pitch :
- 1.27mm
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Package / Case :
- SOD
- Rated Current (Signal) :
- 3A
- Current Rating :
- 3A
- Wire Gauge :
- -
- Contact Resistance :
- 8mOhm
- Empty Shell :
- No
- Insulation Resistance :
- 5000000000Ohm
- Contact Type :
- Signal
- RoHS :
- Details
- Tradename :
- MIL-DTL-83513
- Shell Size :
- B
- Mating Contact Row Spacing :
- 0.043 inch
- Ingress Protection :
- -
- Depth :
- 15.65mm
- Length :
- 23.75mm
- Reference Standard :
- MIL
- Gender :
- Male
- Connector Style :
- D-Type, Micro-D
- Contact Finish :
- Gold
- Brand :
- ITT Cannon
- Current Rating (Amps) :
- 3A
- Dielectric Withstanding Voltage :
- 600VAC V
- Contact Material :
- COPPER ALLOY
- Mounting Angle :
- Straight
- HTS Code :
- 8536.69.40.30
- Number of Terminations :
- 15
- Radiation Hardening :
- No
- Contact Form :
- -
- Total Number of Contacts :
- 15
- Color :
- -
- Manufacturer :
- ITT Cannon
- Features :
- -
- DIN Conformance :
- No
- MIL Conformance :
- yes
- Published :
- 2002
- Number of Ports :
- 1
- Product :
- Connectors
- Package :
- Bulk
- Product Category :
- D-Sub MIL Spec Connectors
- Mounting Style :
- Panel
- Orientation :
- Straight
- Contact Pattern :
- STAGGERED
- Subcategory :
- MIL-Spec / MIL-Type
- Product Status :
- Active
- Mount :
- Panel
- IEC Conformance :
- No
- Contact Gender :
- Male
- Shell Material, Finish :
- Aluminum, Nickel Plated, Electroless
- Product Type :
- D-Sub MIL Spec Connectors
- RoHS Status :
- RoHS Compliant
- Termination Style :
- Solder Cup
- Material Flammability Rating :
- -
- Operating Temperature :
- -55°C ~ 125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Breadth :
- 0.384 inch
- Mixed Contacts :
- No
- Flange Feature :
- Housing/Shell (Unthreaded)
- Plating Thickness :
- 50μin
- Voltage Rating :
- -
- Operating Temperature (Min) :
- -55°C
- Mounting Type :
- Free Hanging (In-Line)
- Shell Material :
- Metal
- Filter Feature :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Housing Material :
- Polymer
- ECCN Code :
- EAR99
- Datasheets
- M83513/01-BN
