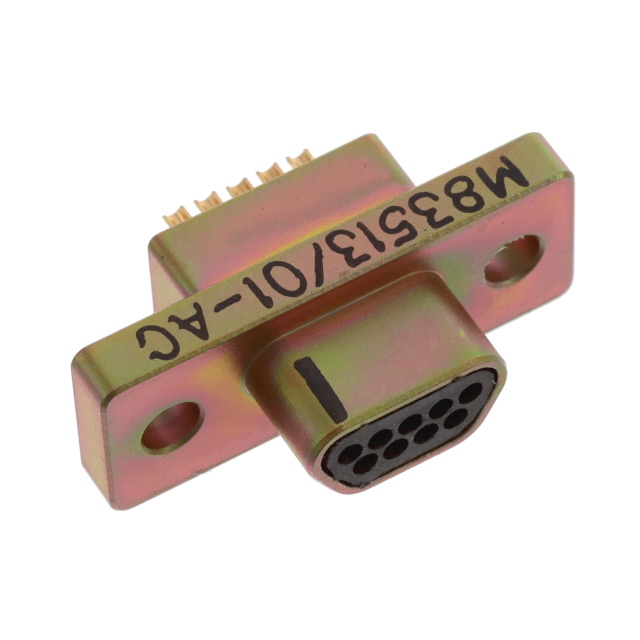

M83513/01-AC
Or copy the link below:
- Mfr.Part #
- M83513/01-AC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 9 POS PLUG SOLDER CUP CD PLTD
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Type :
- Dura-Con High Reliability Connector
- Contact Material :
- Copper
- Connector Style :
- D-Type, Micro-D
- Number of Positions :
- 9 Position
- Subcategory :
- MIL-Spec / MIL-Type
- Package :
- Bag
- Series :
- Military, MIL-C-83513, M83513
- Wire Gauge :
- 26 AWG
- Termination Style :
- Solder Cup
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Contact Type :
- Signal
- Current Rating :
- 3 A
- Material Flammability Rating :
- UL94 V-0
- Product Category :
- D-Sub MIL Spec Connectors
- Product :
- Connectors
- Termination :
- Solder Cup
- Contact Plating :
- Gold
- Insulation Material :
- Glass Filled, Polyester
- Dielectric Material :
- Polyester, Glass Filled
- Manufacturer :
- Cinch Connectivity Solutions
- Color :
- -
- Backset Spacing :
- -
- Product Type :
- D-Sub MIL Spec Connectors
- Gender :
- Male
- Mounting Style :
- Panel
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Current Rating (Amps) :
- 3A
- Shell Plating :
- Cadmium
- Voltage Rating :
- 600 VAC
- Mounting Angle :
- Straight
- Operating Temperature :
- -55°C ~ 125°C
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Number of Rows :
- 2 Row
- Base Product Number :
- M83513/01
- Brand :
- Cinch
- Ingress Protection :
- -
- Flange Feature :
- Housing/Shell (Unthreaded)
- Insulation :
- Insulated
- Shell Size :
- A
- Shell Material :
- Aluminum Alloy
- Mounting Type :
- Panel Mount
- Features :
- -
- Product Status :
- Active
- Contact Finish :
- Gold
- Connector Type :
- Plug, Male Pins
- Contact Form :
- -
- Datasheets
- M83513/01-AC
