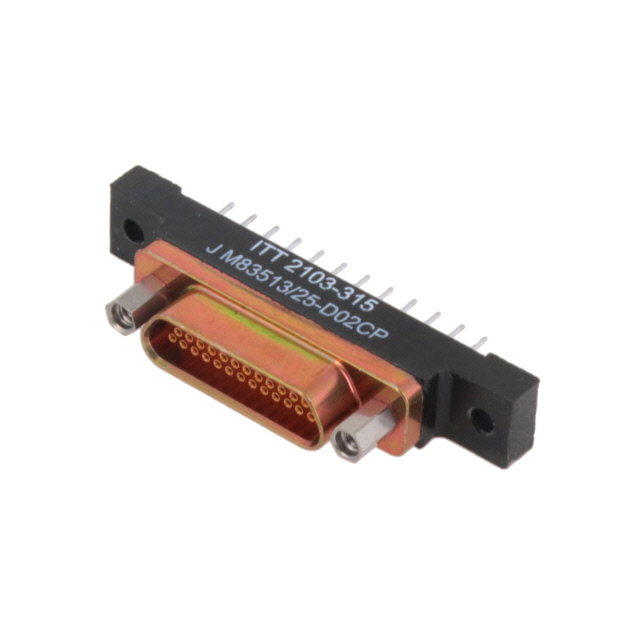

M83513/25-D02CP

Manufacturer :

ITT Cannon

Product Category :

D-Sub Connector Assemblies

Mixed Contacts :

No

Minimum Operating Temperature (°C) :

-55

Shell Plating :

Cadmium

Option :

GENERAL PURPOSE

Terminal Length :

0.14 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Plating :

Gold Over Nickel

Mounting Style :

Panel

Insertion Force-Max :

2.78 N

Terminal Pitch (mm) :

1.27

Mounting Type :

BOARD

Body Depth :

0.355 inch

Body Orientation :

Straight

Durability :

500 Cycles

Board Mounting Option :

HOLE .096

Number of Contacts :

25

Operating Temperature :

-55 to 150 °C

Terminal Pitch :

2.54 mm

Contact Material :

Phosphor Bronze

Gender :

RCP

IEC Conformance :

No

Connector Type :

D MICROMINIATURE CONNECTOR

Mounting :

Through Hole

Number of Ports :

1

ECCN (US) :

EAR99

MIL Conformance :

yes

Number of Terminals :

25

Number of Positions :

25 Position

Termination Style :

Through Hole

Current Rating :

3 A

Mounting Option 2 :

JACKPOST

PCB Contact Pattern :

STAGGERED

Product Length (mm) :

44.2

Empty Shell :

No

ECCN Code :

EAR99

Rated Current (Signal) :

3 A

Reference Standard :

MIL

Less Contact :

No

Body Breadth :

0.308 inch

Number of Rows :

2

DIN Conformance :

No

Shell Material :

Metal

Contact Arrangement :

S25P0

Insulation Resistance :

5000000000 Ω

Maximum Operating Temperature (°C) :

150

Shell Finish :

Cadmium

Contact Style :

RND PIN-SKT

Mounting Angle :

Straight

Contact Resistance :

8 mΩ

RoHS Status :

RoHS Compliant

Body/Shell Style :

Receptacle

Additional Feature :

STANDARD: MIL-DTL-83513

Mating Contact Pitch :

0.05 inch

Number Of PCB Rows :

2

Filter Feature :

No

Termination Type :

Solder

Contact Pattern :

STAGGERED

Product Length :

44.2 mm

Reach Compliance Code :

Compliant

Maximum Current Rating (A) :

3

Mating Contact Row Spacing :

0.043 inch

Type :

D-Subminiature

Manufacturer :

Glenair Inc

Contact Gender :

SKT

Pitch :

2.5400 mm

Shell Size :

B

PCB Contact Row Spacing :

2.54 mm

Plating Thickness :

50u inch

Total Number of Contacts :

25

Mounting Option 1 :

#2-56

Product Depth (mm) :

7.87

Product Height (mm) :

13.41

Withdrawl Force-Min :

0.139 N

Dielectric Withstanding Voltage :

600VAC V

HTS Code :

8536.69.40.30

Termination Method :

Solder

Product :

Connectors
