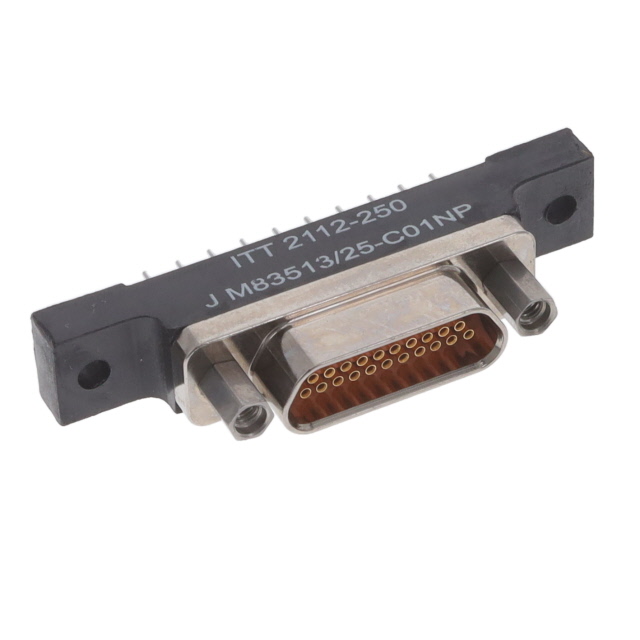

M83513/25-C01NP
Or copy the link below:
- Mfr.Part #
- M83513/25-C01NP
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- MICRO-D RECEPTACLE 21POS PCB, EL
- Stock
- 38
- In Stock ：
- 38
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Current Rating :
- 3 A
- Package :
- Bulk
- Option :
- GENERAL PURPOSE
- Mating Contact Row Spacing :
- 0.043 inch
- Product Type :
- D-Sub MIL Spec Connectors
- Subcategory :
- MIL-Spec / MIL-Type
- Product :
- Connectors
- Contact Arrangement :
- S21P0
- Reach Compliance Code :
- Compliant
- Body Orientation :
- Straight
- Mounting Style :
- Panel
- Product Status :
- Active
- Withdrawl Force-Min :
- 0.139 N
- Plating Thickness :
- 50u inch
- Terminal Length :
- 0.109 inch
- Total Number of Contacts :
- 21
- Mounting :
- Through Hole
- Factory Lead Time :
- 8 Weeks
- Series :
- M83513
- Reference Standard :
- MIL
- Shell Size :
- C
- Product Category :
- D-Sub MIL Spec Connectors
- Contact Pattern :
- STAGGERED
- Pitch :
- 2.5400 mm
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- BOARD
- Shell Finish :
- Nickel
- Mounting Option 1 :
- #2-56
- Mounting Option 2 :
- JACKPOST
- Contact Plating :
- Gold
- Empty Shell :
- No
- Number Of PCB Rows :
- 2
- Product Length :
- 42.93 mm
- Mounting Angle :
- Straight
- Insertion Force-Max :
- 2.78 N
- Insulation :
- Not Insulated
- Filter Feature :
- No
- Body Depth :
- 0.355 inch
- Contact Style :
- RND PIN-SKT
- Connector Type :
- D MICROMINIATURE CONNECTOR
- PCB Contact Pattern :
- STAGGERED
- Base/Housing Material :
- Aluminum
- PCB Contact Row Spacing :
- 2.54 mm
- Body/Shell Style :
- Receptacle
- Durability :
- 500 Cycles
- DIN Conformance :
- No
- Board Mounting Option :
- HOLE .096
- Termination Style :
- Through Hole
- Brand :
- Glenair
- ECCN Code :
- EAR99
- Shell Plating :
- Electroless Nickel
- Shell Material :
- Aluminum
- Tradename :
- MIL-DTL-83513
- Mating Contact Pitch :
- 0.05 inch
- Operating Temperature :
- -55 to 150 °C
- Contact Resistance :
- 8 mΩ
- Gender :
- Receptacle
- Termination Method :
- Solder
- RoHS :
- Details
- Terminal Pitch :
- 2.54 mm
- Manufacturer :
- Glenair
- Additional Feature :
- STANDARD: MIL-DTL-83513
- Dielectric Withstanding Voltage :
- 600VAC V
- Contact Gender :
- FEMALE
- Termination Type :
- Solder
- Number of Positions :
- 21 Position
- IEC Conformance :
- No
- Insulation Resistance :
- 5000000000 Ω
- Mixed Contacts :
- No
- HTS Code :
- 8536.69.40.30
- Body Breadth :
- 0.308 inch
- MIL Conformance :
- yes
- Number of Rows :
- 2 Row
- Rated Current (Signal) :
- 3 A
- Datasheets
- M83513/25-C01NP
M83513 Series D MICROMINIATURE CONNECTOR 21 Position-Position Receptacle BOARD Phosphor Bronze
M83513/25-C01NP Overview
A D MICROMINIATURE CONNECTOR package is included with it.BOARD indicates that the device is mounted.The product is a part of the M83513 Series.Furthermore, there are other features such as STANDARD: MIL-DTL-83513, to name a few.Operating temperature is set to -55 to 150 °C.
