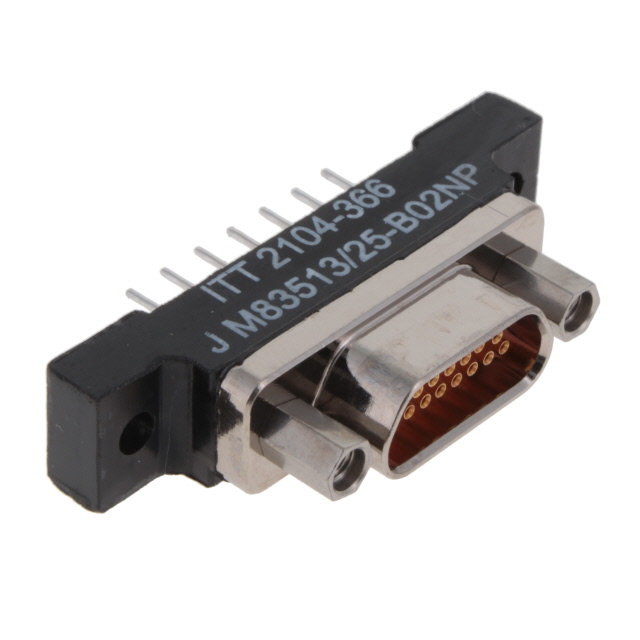

M83513/25-B02NP

Manufacturer :

ITT Cannon

Product Category :

D-Sub Connector Assemblies

Plating Thickness :

50u inch

Mating Contact Row Spacing :

0.043 inch

Contact Resistance :

8 mΩ

Withdrawl Force-Min :

0.139 N

Reach Compliance Code :

Compliant

HTS Code :

8536.69.40.30

Contact Material :

NOT SPECIFIED

PCB Contact Pattern :

STAGGERED

Dielectric Withstanding Voltage :

600VAC V

Contact Gender :

FEMALE

Contact Arrangement :

S15P0

ECCN Code :

EAR99

Body/Shell Style :

Receptacle

Rated Current (Signal) :

3 A

DIN Conformance :

No

Contact Style :

RND PIN-SKT

Total Number of Contacts :

15

Termination Type :

Solder

Board Mounting Option :

HOLE .096

Reference Standard :

MIL

Mounting Type :

BOARD

Mating Contact Pitch :

0.05 inch

Connector Type :

D MICROMINIATURE CONNECTOR

Shell Finish :

Nickel

Contact Pattern :

STAGGERED

Shell Material :

Metal

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Factory Lead Time :

9 Weeks

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number Of PCB Rows :

2

MIL Conformance :

yes

Mounting Style :

Straight

Insulation Resistance :

5000000000 Ω

Body Breadth :

0.308 inch

Shell Size :

B

PCB Contact Row Spacing :

2.54 mm

Terminal Pitch :

2.54 mm

Insertion Force-Max :

2.78 N

Durability :

500 Cycles

Filter Feature :

No

Additional Feature :

STANDARD: MIL-DTL-83513

Mounting Option 1 :

#2-56

Body Depth :

0.355 inch

Terminal Length :

0.14 inch

Mounting Option 2 :

JACKPOST

Empty Shell :

No
