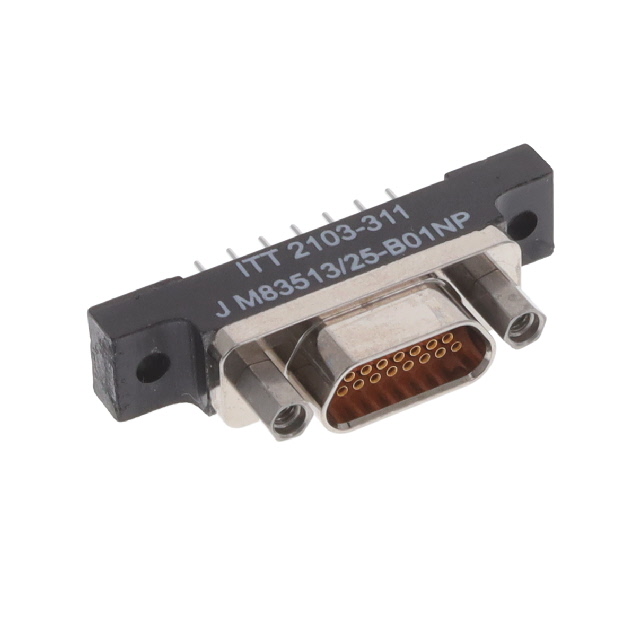

M83513/25-B01NP
Or copy the link below:
- Mfr.Part #
- M83513/25-B01NP
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- MICRO-D RECEPTACLE 15POS PCB, EL
- Stock
- 95
- In Stock ：
- 95
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Shell Material :
- Aluminum
- Product Status :
- Active
- Number of Positions :
- 15 Position
- Product Height (mm) :
- 13.41
- Manufacturer :
- Glenair
- HTS :
- 8536.69.40.51
- Product Depth (mm) :
- 7.87
- Current Rating :
- 3 A
- Maximum Current Rating (A) :
- 3
- Contact Gender :
- SKT
- Gender :
- RCP
- Number of Rows :
- 2
- Subcategory :
- MIL-Spec / MIL-Type
- Series :
- M83513
- Contact Material :
- Phosphor Bronze
- Maximum Contact Resistance (mOhm) :
- 8
- Termination Style :
- Through Hole
- Terminal Pitch (mm) :
- 0.64
- Pitch :
- 2.54 mm
- Mating Cycle (Cycles) :
- 500
- Minimum Operating Temperature (°C) :
- -55
- Maximum Operating Temperature (°C) :
- 150
- Product Length (mm) :
- 35.31
- Number of Contacts :
- 15
- Mounting Angle :
- Straight
- Mounting Style :
- Panel
- RoHS :
- N
- Shell Size :
- B
- Insulation Resistance (MOhm) :
- 5000
- Brand :
- Glenair
- ECCN (US) :
- EAR99
- Product Category :
- D-Sub MIL Spec Connectors
- Package :
- Bulk
- Tradename :
- MIL-DTL-83513
- Termination Method :
- Solder
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Gold Over Nickel
- Product :
- Connectors
- Body Orientation :
- Straight
- Number of Ports :
- 1
- Product Type :
- D-Sub MIL Spec Connectors
- Shell Plating :
- Electroless Nickel
- Number of Terminals :
- 15
- Mounting :
- Through Hole
- Insulation :
- Not Insulated
- Less Contact :
- No
- Type :
- Micro D-Subminiature
- Datasheets
- M83513/25-B01NP
M83513/25-B01NP Documents
M83513 Series 15 Position-Position RCP Phosphor Bronze
M83513/25-B01NP Overview
Specifically, it is one of the products in the M83513 Series.A variety of tasks can be performed using its 1 ports.
M83513/25-B01NP Features
M83513 series
M83513/25-B01NP Applications
There are a lot of Glenair
M83513/25-B01NP D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
