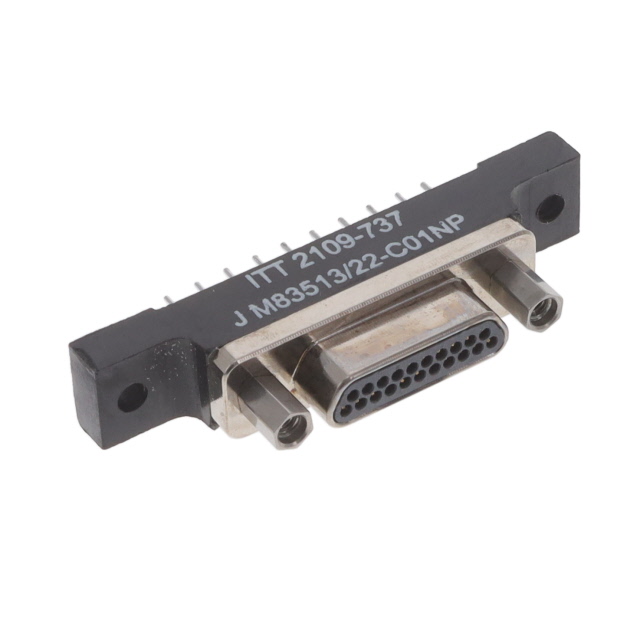

M83513/22-C01NP

Manufacturer :

ITT Cannon

Product Category :

D-Sub Connector Assemblies

Number of Rows :

2

Body Orientation :

Straight

Product Height (mm) :

13.11

Mating Contact Pitch :

0.05 inch

Mixed Contacts :

No

Product Depth (mm) :

7.87

Product Length (mm) :

42.93

Withdrawl Force-Min :

0.139 N

Connector Type :

D MICROMINIATURE CONNECTOR

Mating Contact Row Spacing :

0.043 inch

Type :

Micro D-Subminiature

Dielectric Withstanding Voltage :

600VAC V

Shell Plating :

Electroless Nickel

Less Contact :

No

Reference Standard :

MIL

Body/Shell Style :

PLUG

Mounting :

Through Hole

Filter Feature :

No

Durability :

500 Cycles

Mounting Option 2 :

JACKPOST

Maximum Contact Resistance (mOhm) :

8

Terminal Length :

0.109 inch

Shell Material :

Aluminum

Shell Finish :

Nickel

Contact Material :

BERYLLIUM COPPER

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reach Compliance Code :

Compliant

Contact Pattern :

STAGGERED

Number of Terminals :

21

ECCN (US) :

EAR99

PCB Contact Pattern :

STAGGERED

Mating Cycle (Cycles) :

500

Insulation Resistance :

5000000000 Ω

Shell Size :

C

Maximum Operating Temperature (°C) :

150

Empty Shell :

No

Plating Thickness :

50u inch

Mounting Option 1 :

#2-56

Maximum Current Rating (A) :

3

Minimum Operating Temperature (°C) :

-55

Termination Method :

Solder

Terminal Pitch :

2.54 mm

Contact Arrangement :

S21P0

Body Breadth :

0.308 inch

Gender :

PL

Mounting Type :

BOARD

Manufacturer :

Cinch Connectivity Solutions

Mounting Style :

Straight

Body Depth :

0.355 inch

Contact Style :

RND PIN-SKT

Number of Ports :

1

Number Of PCB Rows :

2

Contact Gender :

Pin

Rated Current (Signal) :

3 A

Number of Contacts :

21

Additional Feature :

STANDARD: MIL-DTL-83513

Board Mounting Option :

HOLE .096

Total Number of Contacts :

21

Insulation Resistance (MOhm) :

5000

Contact Resistance :

8 mΩ

RoHS Status :

RoHS Compliant

Insertion Force-Max :

2.78 N

Terminal Pitch (mm) :

1.27

Contact Plating :

Gold Over Nickel

Option :

GENERAL PURPOSE

Termination Type :

Solder

PCB Contact Row Spacing :

2.54 mm
