M83513/13-D02NP

Share

Or copy the link below:

Mfr.Part #
M83513/13-D02NP
Manufacturer
ITT Cannon
Package / Case
Datasheet
Download
Description

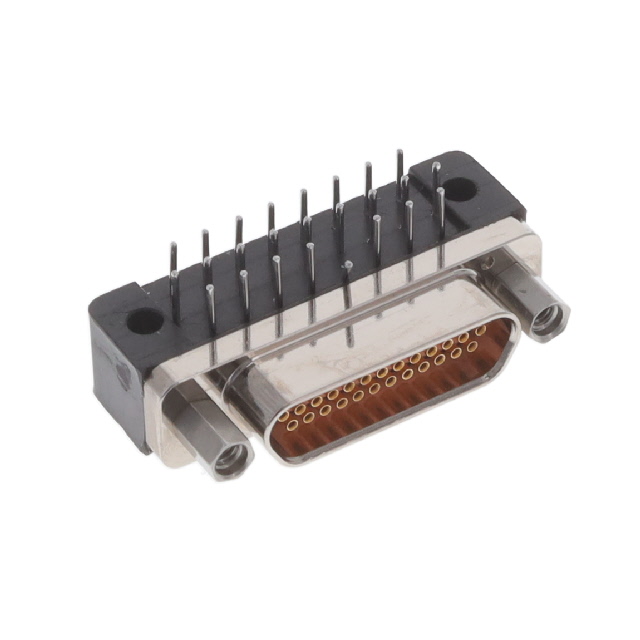

MICRO-D RECEPTACLE 25POS R/A PCB
Stock
26
In Stock :
26

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
D-Sub Connector Assemblies
Rated Current (Signal) :
3 A
Shell Plating :
Electroless Nickel
Contact Arrangement :
S25P0
Mating Contact Pitch :
0.05 inch
Termination Type :
Solder
Tradename :
MIL-DTL-83513
Plating Thickness :
50u inch
HTS Code :
8536.69.40.30
Contact Resistance :
8 mΩ
Number of Positions :
25 Position
Subcategory :
MIL-Spec / MIL-Type
Contact Material :
Phosphor Bronze
JESD-609 Code :
e0
Mounting Angle :
RIGHT ANGLE
Current Rating :
3 A
Body Breadth :
0.325 inch
Product Category :
D-Sub MIL Spec Connectors
Mounting Option 1 :
#2-56
Termination Method :
Solder
Manufacturer :
Glenair
Series :
M83513
Insulation Resistance :
5000000000 Ω
Dielectric Withstanding Voltage :
600VAC V
PCB Contact Pattern :
STAGGERED
Terminal Length :
0.14 inch
Product Status :
Active
Number Of PCB Rows :
3
Contact Finish Termination :
TIN LEAD
Body Depth :
0.425 inch
Insulation :
Not Insulated
Number of Rows :
2 Row
PCB Contact Row Spacing :
2.54 mm
Operating Temperature :
-55 to 150 °C
Mounting Style :
PCB Mount
Mounting Type :
BOARD
Product :
Connectors
Pitch :
2.5400 mm
Brand :
Glenair
Mating Contact Row Spacing :
0.043 inch
Insertion Force-Max :
2.78 N
Gender :
Receptacle
Connector Type :
D MICROMINIATURE CONNECTOR
Contact Pattern :
STAGGERED
Shell Material :
Aluminum
Shell Finish :
Nickel
Withdrawl Force-Min :
0.139 N
Contact Gender :
FEMALE
Body Orientation :
RIGHT ANGLE
Additional Feature :
STANDARD: MIL-DTL-83513
Factory Lead Time :
8 Weeks
Filter Feature :
No
Contact Style :
RND PIN-SKT
Terminal Pitch :
2.54 mm
Shell Size :
D
Mixed Contacts :
No
Product Length :
30.01 mm
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
DIN Conformance :
No
Product Type :
D-Sub MIL Spec Connectors
MIL Conformance :
yes
Package :
Bulk
Reference Standard :
MIL
Total Number of Contacts :
25
RoHS :
Details
Mounting Option 2 :
JACKPOST
Contact Plating :
Gold
Termination Style :
Through Hole
Board Mounting Option :
HOLE.096
Mounting :
Through Hole
Option :
GENERAL PURPOSE
IEC Conformance :
No
Empty Shell :
No
Durability :
500 Cycles
ECCN Code :
EAR99
Body/Shell Style :
Receptacle
Reach Compliance Code :
Compliant
Base/Housing Material :
Aluminum
