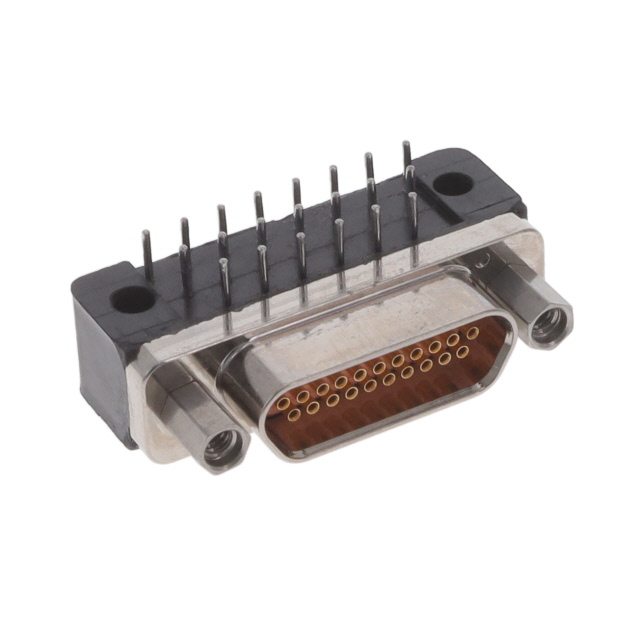

M83513/13-C01NP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Shell Plating :

Electroless Nickel

Series :

M83513

Mounting Option 2 :

JACKPOST

Body Orientation :

RIGHT ANGLE

Mounting Type :

BOARD

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Gender :

SKT

Base/Housing Material :

Aluminum

Terminal Pitch (mm) :

1.27

Withdrawl Force-Min :

0.139 N

ECCN (US) :

EAR99

Connector Type :

D MICROMINIATURE CONNECTOR

Mounting :

Through Hole

Tradename :

MIL-DTL-83513

Contact Plating :

Gold Over Nickel

Dielectric Withstanding Voltage :

600VAC V

Insulation Resistance :

5000000000 Ω

Number Of PCB Rows :

3

Termination Method :

Solder

PCB Contact Pattern :

STAGGERED

IEC Conformance :

No

DIN Conformance :

No

Number of Ports :

1

Product Height (mm) :

7.87

Product :

Connectors

Operating Temperature :

-55 to 150 °C

Reference Standard :

MIL

Gender :

RCP

Reach Compliance Code :

Compliant

Reliability :

MIL-C-83513

Total Number of Contacts :

21

Mixed Contacts :

No

Insulation :

Not Insulated

Mounting Style :

Panel

Less Contact :

No

Contact Resistance :

8 mΩ

Body/Shell Style :

Receptacle

Maximum Current Rating (A) :

3

Mounting Option 1 :

#2-56

Shell Size :

C

Maximum Operating Temperature (°C) :

150

Shell Material :

Aluminum

Mating Contact Row Spacing :

0.043 inch

Current Rating :

3 A

Contact Pattern :

STAGGERED

Board Mounting Option :

HOLE.096

Qualification :

EREL

Subcategory :

MIL-Spec / MIL-Type

Contact Style :

RND PIN-SKT

Product Type :

D-Sub MIL Spec Connectors

Number of Positions :

21 Position

Contact Material :

Phosphor Bronze

Durability :

500 Cycles

Termination Type :

Solder

Minimum Operating Temperature (°C) :

-55

Maximum Contact Resistance (mOhm) :

8

RoHS Status :

RoHS Compliant

Package :

Bulk

Product Length :

27.56 mm

Terminal Pitch :

2.54 mm

RoHS :

Details

Number of Contacts :

21

Rated Current (Signal) :

3 A

Insertion Force-Max :

2.78 N

Pitch :

2.5400 mm

Shell Finish :

Nickel

Termination Style :

Through Hole

Additional Feature :

STANDARD: MIL-DTL-83513

Body Breadth :

0.325 inch

Type :

Micro D-Subminiature

Manufacturer :

Glenair

MIL Conformance :

No

Product Category :

D-Sub MIL Spec Connectors

Number of Rows :

2

Terminal Length :

0.109 inch

Product Status :

Active

PCB Contact Row Spacing :

2.54 mm

Body Depth :

0.425 inch

Mating Contact Pitch :

0.05 inch

Brand :

Glenair

Number of Terminals :

21

Filter Feature :

No

Mounting Angle :

RIGHT ANGLE

Product Depth (mm) :

15.75

Insulation Resistance (MOhm) :

5000

Product Length (mm) :

27.56

Option :

GENERAL PURPOSE

Plating Thickness :

50u inch

Contact Arrangement :

S21P0

Empty Shell :

No

Mating Cycle (Cycles) :

500
