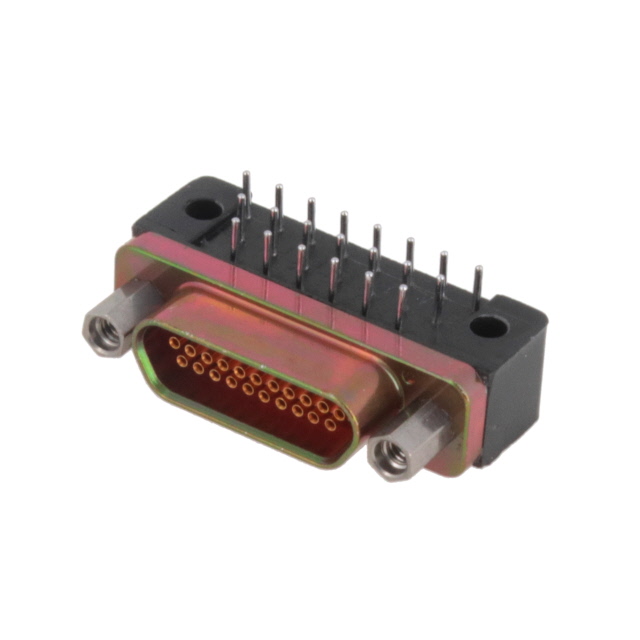

CONN DSUB RCPT 21POS RT ANG
Stock
97
In Stock :
97

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
D-Sub Connector Assemblies
MIL Conformance :
yes
Total Number of Contacts :
21
Number Of PCB Rows :
3
Mounting Type :
BOARD
Withdrawl Force-Min :
0.139 N
Number of Positions :
21 Position
Dielectric Withstanding Voltage :
600VAC V
Body/Shell Style :
Receptacle
Base/Housing Material :
Aluminum
Insulation :
Not Insulated
IEC Conformance :
No
Product :
Connectors
Mating Contact Row Spacing :
0.043 inch
Product Length :
27.56 mm
Number of Rows :
2 Row
Contact Resistance :
8 mΩ
Subcategory :
MIL-Spec / MIL-Type
Filter Feature :
No
Contact Material :
Phosphor Bronze
PCB Contact Row Spacing :
2.54 mm
Shell Finish :
Cadmium
Gender :
Receptacle
Rated Current (Signal) :
3 A
Board Mounting Option :
HOLE.096
Empty Shell :
No
Body Orientation :
RIGHT ANGLE
Shell Plating :
Cadmium
Mounting Option 2 :
JACKPOST
Body Depth :
0.425 inch
Durability :
500 Cycles
Additional Feature :
STANDARD: MIL-DTL-83513
Mounting Option 1 :
#2-56
RoHS :
N
Product Status :
Active
Package :
Bulk
Contact Arrangement :
S21P0
Manufacturer :
Glenair
Connector Type :
D MICROMINIATURE CONNECTOR
Product Type :
D-Sub MIL Spec Connectors
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Mounting :
Through Hole
Contact Gender :
FEMALE
Mounting Style :
PCB Mount
Pitch :
2.5400 mm
Terminal Pitch :
2.54 mm
Operating Temperature :
-55 to 150 °C
Contact Plating :
Gold
Brand :
Glenair
Tradename :
MIL-DTL-83513
Insulation Resistance :
5000000000 Ω
Termination Style :
Through Hole
DIN Conformance :
No
Contact Pattern :
STAGGERED
Termination Method :
Solder
Option :
GENERAL PURPOSE
Mating Contact Pitch :
0.05 inch
Body Breadth :
0.325 inch
Mounting Angle :
RIGHT ANGLE
Series :
M83513
Current Rating :
3 A
Contact Finish Termination :
Cadmium
PCB Contact Pattern :
STAGGERED
Plating Thickness :
50u inch
Termination Type :
Solder
Mixed Contacts :
No
Reference Standard :
MIL
Product Category :
D-Sub MIL Spec Connectors
Terminal Length :
0.109 inch
Insertion Force-Max :
2.78 N
Contact Style :
RND PIN-SKT
Shell Size :
C
Reach Compliance Code :
Compliant
Shell Material :
Aluminum
