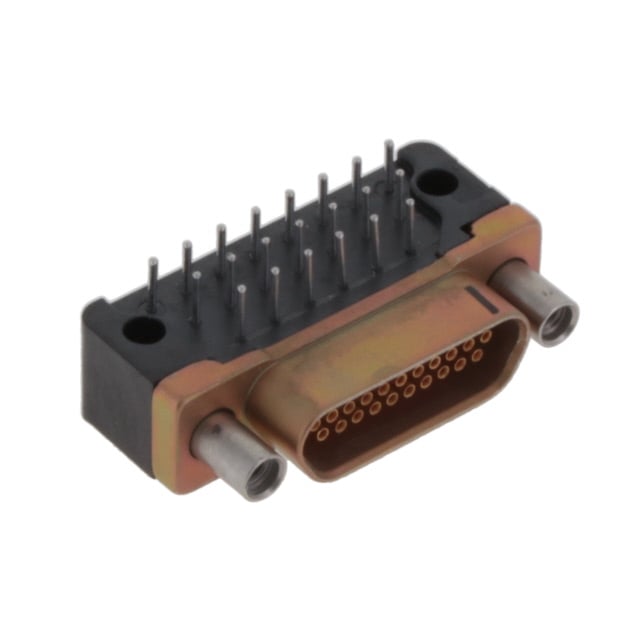

M83513/13-C01CP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Mounting Type :

BOARD

Body Depth :

0.425 inch

MIL Conformance :

yes

Insulation :

Not Insulated

Termination Type :

Solder

Number of Rows :

2 Row

Subcategory :

MIL-Spec / MIL-Type

Additional Feature :

STANDARD: MIL-DTL-83513

Termination Style :

Through Hole

Contact Finish Termination :

Cadmium

Body/Shell Style :

Receptacle

Product Status :

Active

Contact Material :

Phosphor Bronze

Empty Shell :

No

Terminal Length :

0.109 inch

Insertion Force-Max :

2.78 N

Base/Housing Material :

Aluminum

IEC Conformance :

No

Filter Feature :

No

Contact Arrangement :

S21P0

Product Type :

D-Sub MIL Spec Connectors

Mounting :

Through Hole

Current Rating :

3 A

Mounting Option 2 :

JACKPOST

Connector Type :

D MICROMINIATURE CONNECTOR

Gender :

Receptacle

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Positions :

21 Position

Reference Standard :

MIL

Mixed Contacts :

No

Mounting Option 1 :

#2-56

Contact Gender :

FEMALE

Mating Contact Pitch :

0.05 inch

Plating Thickness :

50u inch

Contact Pattern :

STAGGERED

Tradename :

MIL-DTL-83513

Termination Method :

Solder

Mating Contact Row Spacing :

0.043 inch

Contact Resistance :

8 mΩ

Board Mounting Option :

HOLE.096

Operating Temperature :

-55 to 150 °C

Insulation Resistance :

5000000000 Ω

Dielectric Withstanding Voltage :

600VAC V

Terminal Pitch :

2.54 mm

Series :

M83513

Shell Finish :

Cadmium

Withdrawl Force-Min :

0.139 N

Manufacturer :

Glenair

Product Length :

27.56 mm

Contact Style :

RND PIN-SKT

Mounting Angle :

RIGHT ANGLE

Pitch :

2.5400 mm

Contact Plating :

Gold

RoHS :

N

Reach Compliance Code :

Compliant

DIN Conformance :

No

Shell Plating :

Cadmium

Shell Size :

C

PCB Contact Pattern :

STAGGERED

Total Number of Contacts :

21

Number Of PCB Rows :

3

Option :

GENERAL PURPOSE

Shell Material :

Aluminum

Product :

Connectors

Durability :

500 Cycles

Mounting Style :

PCB Mount

PCB Contact Row Spacing :

2.54 mm

Body Orientation :

RIGHT ANGLE

Brand :

Glenair

Product Category :

D-Sub MIL Spec Connectors

Package :

Bulk

Body Breadth :

0.325 inch

Rated Current (Signal) :

3 A
