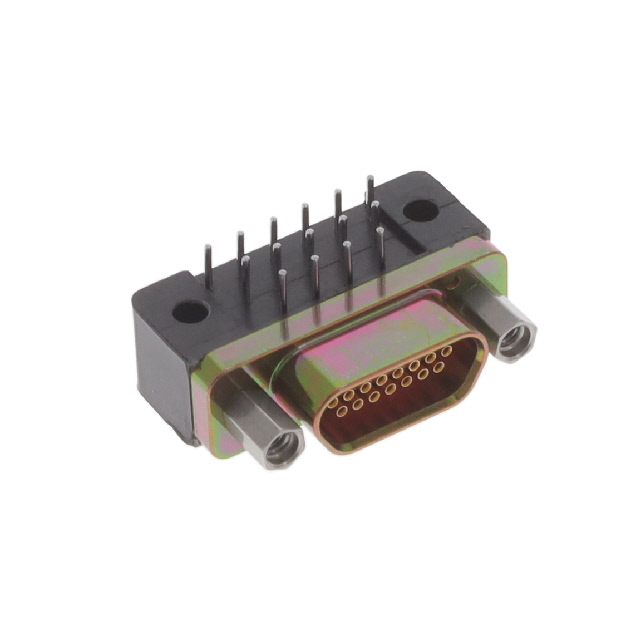

M83513/13-B01CP

Manufacturer :

ITT Cannon

Product Category :

D-Sub Connector Assemblies

Orientation :

RIGHT ANGLE

Subcategory :

MIL-Spec / MIL-Type

Product Length :

23.75 mm

Number of Terminals :

15

Mounting :

Through Hole

Rad Hardened :

No

Plug / Receptacle :

SKT

RoHS :

Non-Compliant

Body Orientation :

RIGHT ANGLE

Product Category :

D-Sub MIL Spec Connectors

Number of Ports :

1(Port)

Contact Material :

Phosphor Bronze

Product Length (mm) :

23.75(mm)

Product Height (mm) :

7.87(mm)

Termination :

Solder

Operating Temp Range :

-55C to 150C

Package :

Bulk

Plating :

Cadmium

Contact Pitch (mm) :

1.27(mm)

Number of Rows :

3

Base/Housing Material :

Aluminum

Depth :

15.75 mm

Product :

Connectors

Shell Material :

Aluminium

Min Operating Temperature :

-55 °C

Tradename :

MIL-DTL-83513

Max Operating Temperature :

150 °C

Gender :

Receptacle

Product Type :

D-Sub MIL Spec Connectors

Brand :

Glenair

Current Rating :

3(A)

Housing Material :

Aluminum

Termination Method :

Solder

Insulation :

Not Insulated

Mount :

Through Hole

Contact Plating :

Gold

Mounting Style :

Through Hole

Product Status :

Active

Shell Size :

B

Product Depth (mm) :

15.75(mm)

Number of Positions :

15

Termination Style :

Through Hole

Type :

Micro D-Subminiature

Number of Contact Rows :

2

Number of Contacts :

15(POS)

Pitch :

2.5400 mm

Operating Temperature :

-55 to 150 °C

Shell Plating :

Cadmium

Mounting Angle :

RIGHT ANGLE

Series :

M83513

Manufacturer :

Glenair

Length :

23.75 mm
