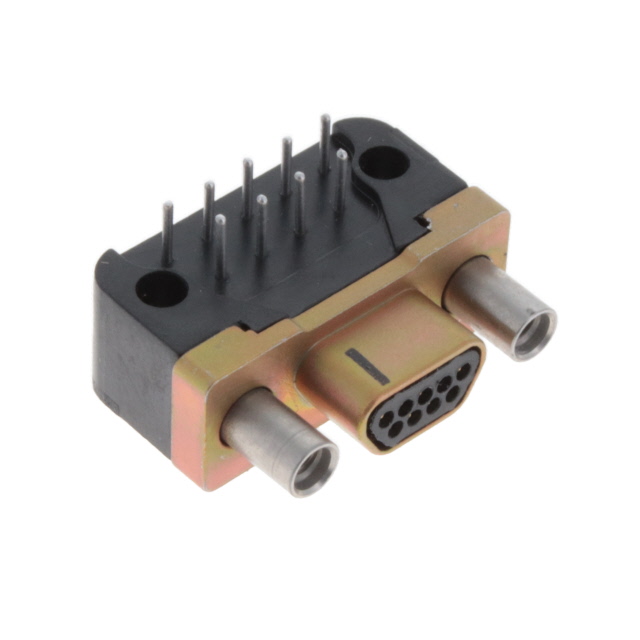

M83513/10-A01NP

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Shell Material :

Aluminum

MIL Conformance :

yes

Manufacturer :

Glenair Inc

PCB Contact Row Spacing :

2.54 mm

Product Depth (mm) :

15.45

Contact Resistance :

8 mΩ

Plating Thickness :

50u inch

Minimum Operating Temperature (°C) :

-55

Mixed Contacts :

No

Gender :

PL

Number of Rows :

2

Contact Material :

BERYLLIUM COPPER

Connector Type :

D MICROMINIATURE CONNECTOR

Empty Shell :

No

Contact Plating :

Gold Over Nickel

Durability :

500 Cycles

Mounting Option 2 :

JACKPOST

Contact Gender :

Pin

Maximum Current Rating (A) :

3

HTS :

8536.69.80.00

Number of Ports :

1

Body Breadth :

0.325 inch

Mounting :

Through Hole

Additional Feature :

STANDARD: MIL-DTL-83513

Base/Housing Material :

Aluminum

Total Number of Contacts :

9

Maximum Operating Temperature (°C) :

150

Product Length :

19.94 mm

Termination Method :

Solder

Shell Finish :

Nickel

Less Contact :

No

Insulation Resistance :

5000000000 Ω

Option :

GENERAL PURPOSE

Termination Type :

Solder

Filter Feature :

No

Reference Standard :

MIL

JESD-609 Code :

e0

Mounting Style :

RIGHT ANGLE

Number Of PCB Rows :

2

Insulation Resistance (MOhm) :

5000

Product Height (mm) :

7.87

DIN Conformance :

No

Board Mounting Option :

HOLE.096

Insertion Force-Max :

2.78 N

Terminal Pitch :

2.54 mm

Type :

Micro D-Subminiature

Number of Terminals :

9

Dielectric Withstanding Voltage :

600VAC V

Factory Lead Time :

9 Weeks

Mating Contact Row Spacing :

0.043 inch

Terminal Length :

0.109 inch

Body/Shell Style :

PLUG

Body Orientation :

RIGHT ANGLE

Terminal Pitch (mm) :

1.27

Rated Current (Signal) :

3 A

Shell Size :

A

Contact Arrangement :

S9P0

Mating Contact Pitch :

0.05 inch

PCB Contact Pattern :

STAGGERED

Product Length (mm) :

19.94

IEC Conformance :

No

ECCN (US) :

EAR99

Contact Pattern :

STAGGERED

Maximum Contact Resistance (mOhm) :

8

Pitch :

2.5400 mm

Contact Style :

RND PIN-SKT

Mounting Type :

BOARD

Body Depth :

0.425 inch

RoHS Status :

RoHS Compliant

Contact Finish Termination :

TIN LEAD

Number of Contacts :

9

Reach Compliance Code :

Compliant

Mounting Option 1 :

#2-56

Operating Temperature :

-55 to 150 °C

Mating Cycle (Cycles) :

500

Withdrawl Force-Min :

0.139 N

Shell Plating :

Electroless Nickel

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
