M83513/02-HC
Or copy the link below:
- Mfr.Part #
- M83513/02-HC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 100 POS RCPT SOLDER CUP CD PLTD
- Stock
- 53
- In Stock ：
- 53
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Maximum Current Rating (A) :
- 3
- Product Depth (mm) :
- 15.72
- Features :
- -
- Product :
- Connectors
- Number of Terminals :
- 100
- Subcategory :
- MIL-Spec / MIL-Type
- Number of Contacts :
- 100
- Base Product Number :
- M83513/02
- Ingress Protection :
- -
- Termination :
- Solder Cup
- Contact Form :
- -
- Number of Positions :
- 100 Position
- ECCN (US) :
- EAR99
- Shell Material :
- Aluminum Alloy
- Body Orientation :
- Straight
- Package :
- Bag
- Color :
- -
- Contact Plating :
- Gold
- Series :
- Military, MIL-C-83513, M83513
- Contact Material :
- COPPER ALLOY
- Maximum Contact Resistance (mOhm) :
- 8
- Maximum Operating Temperature (°C) :
- 125
- Current Rating (Amps) :
- 3A
- Mounting :
- Panel Mount
- Contact Gender :
- SKT
- Voltage Rating :
- 600 VAC
- Termination Style :
- Solder Cup
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Gender :
- RCP
- RoHS Status :
- RoHS non-compliant
- Current Rating :
- 3 A
- Tradename :
- Dura-Con™
- Less Contact :
- No
- Flange Feature :
- Housing/Shell (Unthreaded)
- Product Category :
- D-Sub MIL Spec Connectors
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Panel Mount
- Product Length (mm) :
- 54.86
- Shell Plating :
- Cadmium
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Manufacturer :
- Cinch Connectivity Solutions
- Terminal Pitch (mm) :
- 0.64
- Shell Size :
- H
- Insulation Material :
- Glass Filled, Polyester
- Mounting Angle :
- Straight
- Insulation :
- Insulated
- Type :
- Micro D-Subminiature
- Minimum Operating Temperature (°C) :
- -55
- Mounting Style :
- Panel
- Number of Ports :
- 1
- Product Height (mm) :
- 9.75
- Mating Cycle (Cycles) :
- 500
- Contact Type :
- Signal
- Product Type :
- D-Sub MIL Spec Connectors
- Termination Method :
- Solder Cup
- Connector Type :
- Receptacle, Female Sockets
- Brand :
- Cinch
- Wire Gauge :
- -
- Product Status :
- Active
- Connector Style :
- D-Type, Micro-D
- Dielectric Material :
- Polyester, Glass Filled
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.050 Row to Row
- Operating Temperature :
- -55°C ~ 125°C
- Backset Spacing :
- -
- Number of Rows :
- 4
- Contact Finish :
- Gold
- Datasheets

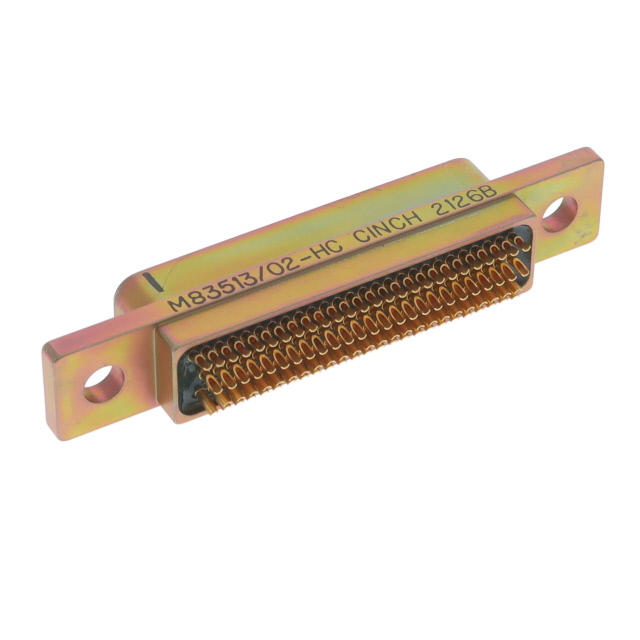

- M83513/02-HC
M83513/02-HC Documents
Military, MIL-C-83513, M83513 Series D-Type, Micro-D Receptacle, Female Sockets 100 Position-Position RCP Signal Solder Cup 0.050 Pitch x 0.050 Row to Row Panel Mount Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
M83513/02-HC Overview
Packaging is in the form of Receptacle, Female Sockets.The mounting type of the device is Panel Mount.A product of the Military, MIL-C-83513, M83513 Series, it belongs to the range of products of that series.There are 1 ports available for a variety of tasks to be performed on it.-55°C ~ 125°C Operating Temperature is the default operating temperature for the device.
