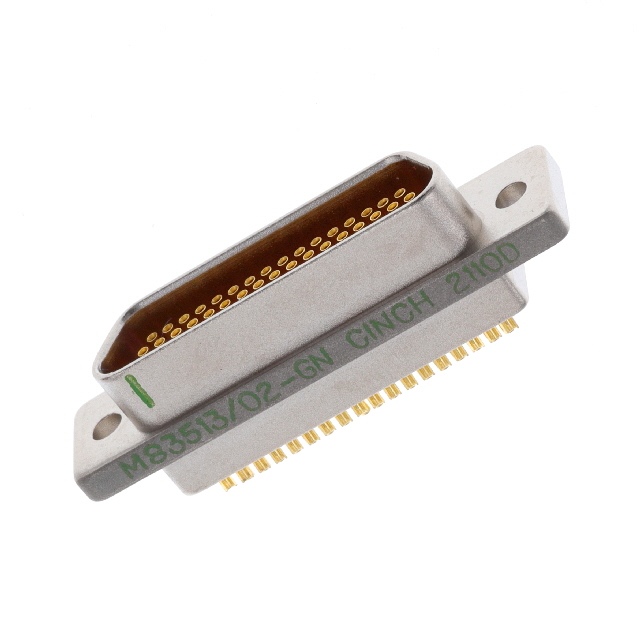

M83513/02-GN
Or copy the link below:
- Mfr.Part #
- M83513/02-GN
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 51 POS RCPT SOLDER CUP NI PLTD
- Stock
- 172
- In Stock ：
- 172
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Contact Finish :
- Gold
- Number of Rows :
- 3
- Product Status :
- Active
- Backset Spacing :
- -
- Product Category :
- D-Sub MIL Spec Connectors
- Current Rating :
- 3 A
- Gender :
- RCP
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3A
- RoHS :
- Details
- Package :
- Bag
- Maximum Current Rating (A) :
- 3
- Contact Type :
- Signal
- Product Height (mm) :
- 8.66
- Type :
- Micro D-Subminiature
- Product :
- Connectors
- Less Contact :
- No
- Termination :
- Solder Cup
- Operating Temperature :
- -55°C ~ 125°C
- Mounting Style :
- Panel
- Mounting Type :
- Panel Mount
- Terminal Pitch (mm) :
- 0.64
- Number of Terminals :
- 51
- Wire Gauge :
- -
- Features :
- -
- Insulation Material :
- Glass Filled, Polyester
- Contact Gender :
- SKT
- Connector Type :
- Receptacle, Female Sockets
- Shell Plating :
- Electroless Nickel
- Contact Plating :
- Gold
- Mounting Angle :
- Straight
- Number of Contacts :
- 51
- Termination Method :
- Solder Cup
- Contact Form :
- -
- Connector Style :
- D-Type, Micro-D
- Mating Cycle (Cycles) :
- 500
- Shell Material, Finish :
- Aluminum Alloy, Nickel Plated, Electroless
- Color :
- -
- RoHS Status :
- Supplier Unconfirmed
- Series :
- Military, MIL-C-83513, M83513
- Voltage Rating :
- 600 VAC
- Minimum Operating Temperature (°C) :
- -55
- Product Type :
- D-Sub MIL Spec Connectors
- Insulation :
- Insulated
- Product Depth (mm) :
- 15.72
- Body Orientation :
- Straight
- Maximum Operating Temperature (°C) :
- 125
- Dielectric Material :
- Polyester, Glass Filled
- Product Length (mm) :
- 36.2
- Flange Feature :
- Housing/Shell (Unthreaded)
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.050 Row to Row
- Manufacturer :
- Cinch Connectivity Solutions
- Termination Style :
- Solder Cup
- Number of Positions :
- 51 Position
- Maximum Contact Resistance (mOhm) :
- 8
- Subcategory :
- MIL-Spec / MIL-Type
- Shell Size :
- G
- Shell Material :
- Aluminum Alloy
- Number of Ports :
- 1
- Ingress Protection :
- -
- Base Product Number :
- M83513/02
- Contact Material :
- COPPER ALLOY
- ECCN (US) :
- EAR99
- Tradename :
- Dura-Con™
- Brand :
- Cinch
- Mounting :
- Panel Mount
- Datasheets
- M83513/02-GN
M83513/02-GN Documents
Military, MIL-C-83513, M83513 Series D-Type, Micro-D Receptacle, Female Sockets 51 Position-Position RCP Signal Solder Cup 0.050 Pitch x 0.050 Row to Row Panel Mount Copper Alloy Gold Aluminum Alloy, Nickel Plated, Electroless
M83513/02-GN Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Panel Mount.It belongs to the Military, MIL-C-83513, M83513 Series of products.It features 1 ports for managing a variety of tasks.The device runs in -55°C ~ 125°C Operating Temperature.
M83513/02-GN Features
Military, MIL-C-83513, M83513 series
M83513/02-GN Applications
There are a lot of Cinch Connectivity Solutions
M83513/02-GN D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
