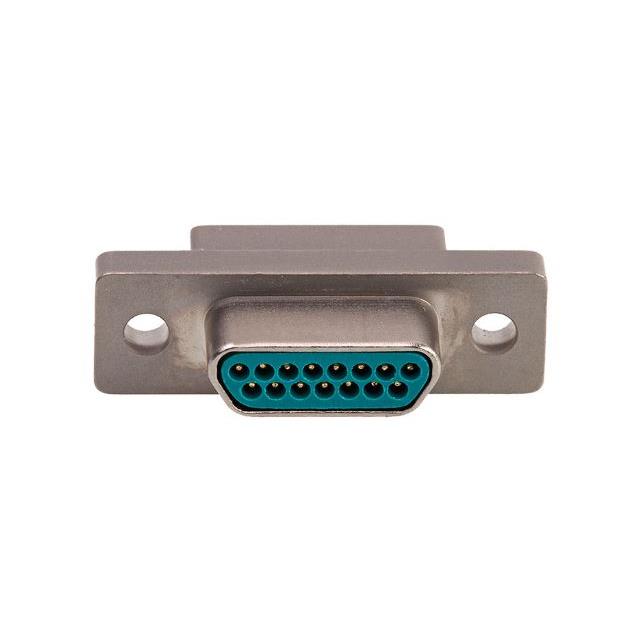

M83513/02-EC
Or copy the link below:
- Mfr.Part #
- M83513/02-EC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- SOD
- Datasheet
- Download
- Description
- 31 POS RCPT SOLDER CUP CD PLTD
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Product Category :
- D-Sub MIL Spec Connectors
- Contact Plating :
- Gold
- Body Breadth :
- 0.384 inch
- Durability :
- 500 Cycles
- IEC Conformance :
- No
- Gender :
- FEMALE
- MIL Conformance :
- yes
- Min Operating Temperature :
- -55 °C
- Termination :
- Solder Cup
- Flange Feature :
- Housing/Shell (Unthreaded)
- Shell Size :
- E
- Manufacturer :
- ITT Cannon
- Contact Finish :
- Gold
- Contact Type :
- Signal
- Package / Case :
- SOD
- RoHS :
- Non-Compliant
- Housing Material :
- Polymer
- Product Status :
- Active
- Max Operating Temperature :
- 125 °C
- Current Rating (Amps) :
- 3A
- Number of Rows :
- 2
- Pitch :
- 1.27mm
- Package :
- Bulk
- Reference Standard :
- MIL
- DIN Conformance :
- No
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Ingress Protection :
- -
- Length - Termination :
- 0.11 inch
- Mount :
- Free Hanging, Panel
- Packaging :
- Bulk
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Product :
- Connectors
- Dielectric Withstanding Voltage :
- 600VAC V
- Series :
- 83513-Style Micro D Metal Shell (MDM)
- Brand :
- ITT Cannon
- Additional Feature :
- STANDARD: MIL-DTL-83513
- Mounting Style :
- Panel
- Wire Gauge :
- -
- Shell Material, Finish :
- Aluminum, Yellow Chromate Plated Cadmium
- Contact Form :
- -
- Mounting Angle :
- Straight
- Filter Feature :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Subcategory :
- MIL-Spec / MIL-Type
- Color :
- -
- Withdrawl Force-Min :
- 0.139 N
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Published :
- 2011
- Contact Resistance :
- 8mOhm
- Features :
- -
- Pbfree Code :
- No
- Number of Conductors :
- ONE
- Total Number of Contacts :
- 31
- Current Rating :
- 3A
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mating Contact Row Spacing :
- 0.043 inch
- Operating Temperature :
- -55°C~125°C
- Insulation Resistance :
- 5000000000Ohm
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Number of Positions :
- 31
- Voltage Rating :
- -
- Tradename :
- MIL-DTL-83513
- Termination Style :
- Solder Cup
- Connector Style :
- D-Type, Micro-D
- Radiation Hardening :
- No
- Backset Spacing :
- -
- Connector Type :
- Receptacle, Female Sockets
- Number of Contacts :
- 31
- Empty Shell :
- No
- Product Type :
- D-Sub MIL Spec Connectors
- Material Flammability Rating :
- -
- Plating Thickness :
- 50μin
- Rated Current (Signal) :
- 3A
- Contact Material :
- COPPER ALLOY
- Datasheets
- M83513/02-EC
M83513/02-EC Documents
83513-Style Micro D Metal Shell (MDM) Series D-Type, Micro-D Receptacle, Female Sockets 31-Position Female Signal Solder Cup 0.050 Pitch x 0.043 Row to Row Free Hanging (In-Line) Copper Alloy Gold Aluminum, Yellow Chromate Plated Cadmium
M83513/02-EC Overview
The product is packaged in Receptacle, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 83513-Style Micro D Metal Shell (MDM) Series, it can be found in this category.There are also other features such as STANDARD: MIL-DTL-83513, to name only a few.Temperatures below 125 °C are best for using it.There's a minimum temperature of -55 °C for this device.An enclosed device is enclosed in the packaging with the SOD.In this case, Free Hanging, Panel mounts the part.The device is operating at -55°C~125°C Operating Temperature.
