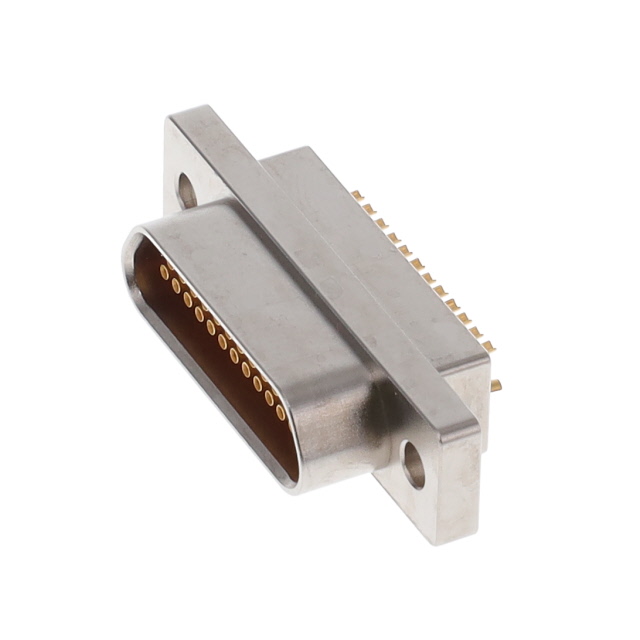

M83513/02-DN

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Termination Type :

Solder

Product :

Connectors

Number of Rows :

2

Tradename :

MIL-DTL-83513

Manufacturer :

Glenair

Empty Shell :

No

Reference Standard :

MIL

Body Breadth :

0.384 inch

Additional Feature :

STANDARD: MIL-DTL-83513

Base/Housing Material :

Aluminum

Maximum Current Rating (A) :

3

Contact Style :

RND PIN-SKT

MIL Conformance :

yes

Width :

10.9mm

Mating Cycle (Cycles) :

500

DIN Conformance :

No

RoHS :

Details

Body Orientation :

Straight

Insertion Force-Max :

2.78 N

Termination Style :

Solder Cup

Product Depth (mm) :

15.98

Durability :

500 Cycles

Connector Type :

D MICROMINIATURE CONNECTOR

Mounting Type :

Cable Mount

Type :

D-Subminiature

Insulation Resistance :

5000000000 Ω

Contact Gender :

SKT

Insulation :

Not Insulated

Rated Current (Signal) :

3 A

Product Type :

D-Sub MIL Spec Connectors

Number of Ports :

1

Filter Feature :

No

Terminal Pitch (mm) :

1.27

Maximum Operating Temperature (°C) :

150

Subcategory :

MIL-Spec / MIL-Type

Minimum Operating Temperature (°C) :

-55

Series :

M83513

Number of Terminals :

25

Withdrawl Force-Min :

0.139 N

Shell Plating :

Electroless Nickel

Housing Material :

Aluminium

Mixed Contacts :

No

Mounting Option 1 :

HOLE .096

Brand :

Glenair

Depth :

7.87mm

Shell Finish :

Nickel

Termination Method :

Solder Cup

Contact Plating :

Gold Over Nickel

Contact Resistance :

8 mΩ

Product Height (mm) :

7.87

Length :

30.01mm

ECCN (US) :

EAR99

Terminal Length :

0.11 inch

Mounting :

Panel Mount

Product Category :

D-Sub MIL Spec Connectors

Mounting Angle :

Straight

Current Rating :

3 A

Total Number of Contacts :

25

Contact Pattern :

STAGGERED

Gender :

RCP

Contact Material :

Phosphor Bronze

Maximum Contact Resistance (mOhm) :

8

Product Length :

30.01 mm

Dielectric Withstanding Voltage :

600VAC V

Factory Lead Time :

19 Weeks

Body Depth :

0.223 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Wire Gauge :

26 AWG

Option :

GENERAL PURPOSE

IEC Conformance :

No

Mating Contact Pitch :

0.05 inch

Mating Contact Row Spacing :

0.043 inch

Shell Size :

D

RoHS Status :

Yes with exemptions

Body/Shell Style :

Receptacle

Contact Arrangement :

S25P0

Product Length (mm) :

30.01

Package :

Bulk

Number of Contacts :

25

Reach Compliance Code :

Compliant

Qualification :

EREL

Product Status :

Active

Dimensions :

30.01 x 10.9 x 7.87mm

Plating Thickness :

50u inch

Mounting Style :

Panel

Insulation Resistance (MOhm) :

5000

Operating Temperature :

-55 to 150 °C

Shell Material :

Aluminum

Pitch :

2.5400 mm

Number of Positions :

25 Position
