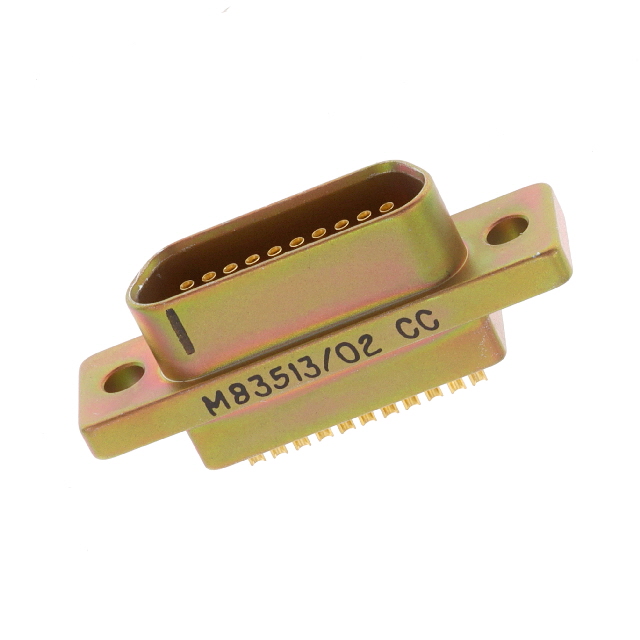

M83513/02-CC
Or copy the link below:
- Mfr.Part #
- M83513/02-CC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 21 POS RCPT SOLDER CUP CD PLTD
- Stock
- 99
- In Stock ：
- 99
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Mounting Angle :
- Straight
- Length - Termination :
- 0.11 inch
- Voltage Rating :
- -
- Contact Material :
- COPPER ALLOY
- Product Type :
- D-Sub MIL Spec Connectors
- Total Number of Contacts :
- 21
- Mounting Style :
- Panel
- Termination :
- Solder Cup
- Number of Positions :
- 21
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Contact Form :
- -
- Insulation Resistance :
- 5000000000Ohm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Published :
- 2002
- Plating Thickness :
- 50μin
- Subcategory :
- MIL-Spec / MIL-Type
- Wire Gauge :
- -
- RoHS :
- N
- Material Flammability Rating :
- -
- Shell Size :
- C
- Product Status :
- Active
- Packaging :
- Bulk
- Mating Contact Row Spacing :
- 0.043 inch
- Termination Style :
- Solder Cup
- IEC Conformance :
- No
- Mating Contact Pitch :
- 0.05 inch
- Gender :
- Receptacle
- Contact Plating :
- Gold
- Body Length or Diameter :
- 1.075 inch
- Backset Spacing :
- -
- Additional Feature :
- STANDARD: MIL-DTL-83513
- Ingress Protection :
- -
- Reference Standard :
- MIL
- Filter Feature :
- No
- RoHS Status :
- Non-RoHS Compliant
- Operating Temperature :
- -55°C~125°C
- Brand :
- ITT Cannon
- Connector Type :
- Receptacle, Female Sockets
- Product Category :
- D-Sub MIL Spec Connectors
- Empty Shell :
- No
- Pbfree Code :
- No
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- MIL Conformance :
- yes
- Mounting Option 1 :
- HOLE .096
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Contact Resistance :
- 8mOhm
- Color :
- -
- Tradename :
- MIL-DTL-83513
- Mounting Type :
- Free Hanging (In-Line)
- Shell Material, Finish :
- Aluminum, Yellow Chromate Plated Cadmium
- Series :
- 83513-Style Micro D Metal Shell (MDM)
- Contact Type :
- Signal
- Connector Style :
- D-Type, Micro-D
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Manufacturer :
- ITT Cannon
- Package :
- Bulk
- Product :
- Connectors
- Flange Feature :
- Housing/Shell (Unthreaded)
- Dielectric Withstanding Voltage :
- 600VAC V
- Withdrawl Force-Min :
- 0.139 N
- Factory Lead Time :
- 5 Weeks
- Features :
- -
- Current Rating (Amps) :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Durability :
- 500 Cycles
- Body Breadth :
- 0.384 inch
- Number of Conductors :
- ONE
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Contact Finish :
- Gold
- Datasheets
- M83513/02-CC
M83513/02-CC Documents
83513-Style Micro D Metal Shell (MDM) Series D-Type, Micro-D Receptacle, Female Sockets 21-Position Receptacle Signal Solder Cup 0.050 Pitch x 0.043 Row to Row Free Hanging (In-Line) Copper Alloy Gold Aluminum, Yellow Chromate Plated Cadmium
M83513/02-CC Overview
The product is packaged in Receptacle, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 83513-Style Micro D Metal Shell (MDM) Series, it can be found in this category.There are also other features such as STANDARD: MIL-DTL-83513, to name only a few.The device is operating at -55°C~125°C Operating Temperature.
M83513/02-CC Features
83513-Style Micro D Metal Shell (MDM) series
M83513/02-CC Applications
There are a lot of ITT Cannon, LLC
M83513/02-CC D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
