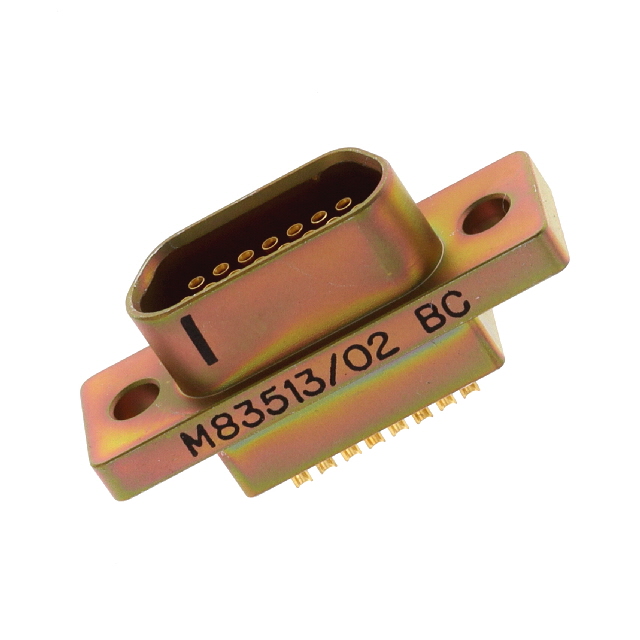

M83513/02-BC
Or copy the link below:
- Mfr.Part #
- M83513/02-BC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 15 POS RCPT SOLDER CUP CD PLTD
- Stock
- 122
- In Stock ：
- 122
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Mounting :
- Panel Mount
- Product Status :
- Active
- Product Type :
- D-Sub MIL Spec Connectors
- Shell Material :
- Aluminum
- Product Category :
- D-Sub MIL Spec Connectors
- Number of Positions :
- 15 Position
- Number of Rows :
- 2 Row
- Pitch :
- 2.5400 mm
- Shell Plating :
- Cadmium
- Mounting Style :
- Panel
- Pin Count :
- 15
- Mounting Angle :
- Straight
- Base/Housing Material :
- LCP (Liquid Crystal Polymer)/PPS (Polyphenylene Sulfide)
- Termination Method :
- Solder Cup
- Gender :
- Receptacle
- Brand :
- Glenair
- Plating :
- Cadmium
- Body Orientation :
- Straight
- RoHS :
- N
- Tradename :
- MIL-DTL-83513
- Package :
- Bulk
- Product :
- Connectors
- Insulation :
- Not Insulated
- Series :
- M83513
- Manufacturer :
- Glenair
- Subcategory :
- MIL-Spec / MIL-Type
- Operating Temperature :
- -55 to 125 °C
- Product Length :
- 23.75 mm
- Shell Size :
- B
- Qualification :
- EREL
- Type :
- Micro D-Subminiature
- Number of Contacts :
- 15 POS
- Termination :
- Solder
- Contact Plating :
- Gold
- Wire Gauge :
- 26 AWG
- Termination Style :
- Solder Cup
- Number of Ports :
- 1
- Contact Material :
- BERYLLIUM COPPER
- Number of Terminals :
- 15
- Current Rating :
- 3 A
- Datasheets
- M83513/02-BC
M83513/02-BC Documents
M83513 Series 15 Position-Position Receptacle Solder Beryllium Copper
M83513/02-BC Overview
Among the products in the M83513 Series, it is one of the most popular.You can manage a variety of things with its 1 ports.-55 to 125 °C Operating Temperature is used by the device.
M83513/02-BC Features
15 pin count
M83513 series
M83513/02-BC Applications
There are a lot of Glenair
M83513/02-BC D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
