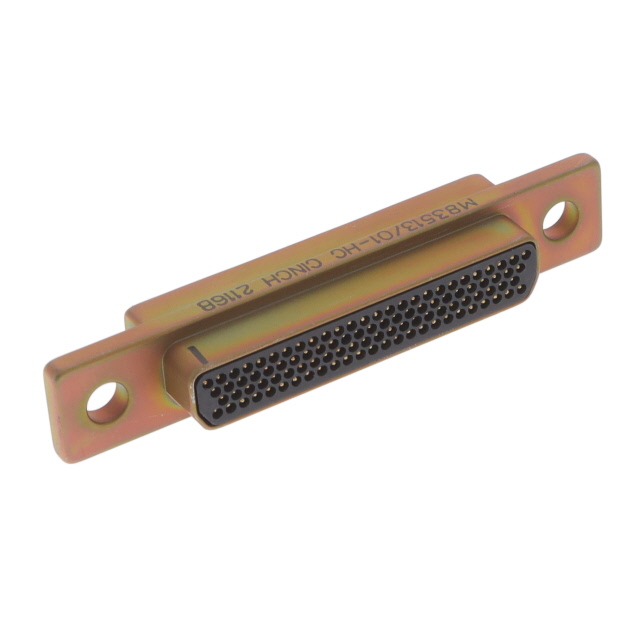

M83513/01-HC
Or copy the link below:
- Mfr.Part #
- M83513/01-HC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 100 POS PLUG SOLDER CUP CD PLTD
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Number of Terminals :
- 100
- Contact Gender :
- Pin
- Material Flammability Rating :
- UL94 V-0
- Subcategory :
- MIL-Spec / MIL-Type
- Insulation :
- Insulated
- Minimum Operating Temperature (°C) :
- -55
- Backset Spacing :
- -
- Voltage Rating :
- 600 VAC
- Base Product Number :
- M83513/01
- Series :
- Military, MIL-C-83513, M83513
- Type :
- Micro D-Subminiature
- Color :
- -
- Current Rating (Amps) :
- 3A
- Features :
- -
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.050 Row to Row
- Current Rating :
- 3 A
- Gender :
- PL
- Connector Style :
- D-Type, Micro-D
- Number of Rows :
- 4
- Mounting Angle :
- Straight
- Mounting Type :
- Panel Mount
- Terminal Pitch (mm) :
- 0.64
- Mounting :
- Panel Mount
- Connector Type :
- Plug, Male Pins
- Dielectric Material :
- Polyester, Glass Filled
- Flange Feature :
- Housing/Shell (Unthreaded)
- Contact Material :
- COPPER ALLOY
- Number of Contacts :
- 100
- Insulation Material :
- Glass Filled, Polyester
- Termination Method :
- Solder Cup
- Manufacturer :
- Cinch Connectivity Solutions
- Maximum Operating Temperature (°C) :
- 125
- Product Type :
- D-Sub MIL Spec Connectors
- Package :
- Bag
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Ingress Protection :
- -
- Shell Size :
- H
- ECCN (US) :
- EAR99
- Body Orientation :
- Straight
- Product :
- Connectors
- Brand :
- Cinch
- Mating Cycle (Cycles) :
- 500
- RoHS Status :
- RoHS non-compliant
- Product Category :
- D-Sub MIL Spec Connectors
- Maximum Current Rating (A) :
- 3
- Termination Style :
- Solder Cup
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Contact Form :
- -
- Less Contact :
- No
- Product Depth (mm) :
- 15.39
- Number of Positions :
- 100 Position
- Maximum Contact Resistance (mOhm) :
- 8
- Contact Finish :
- Gold
- Wire Gauge :
- -
- Product Length (mm) :
- 54.86
- Contact Plating :
- Gold
- Tradename :
- Dura-Con™
- Shell Plating :
- Cadmium
- Number of Ports :
- 1
- Shell Material :
- Aluminum Alloy
- Contact Type :
- Signal
- Product Height (mm) :
- 9.75
- Termination :
- Solder Cup
- Operating Temperature :
- -55°C ~ 125°C
- Product Status :
- Active
- Mounting Style :
- Panel
- Datasheets
- M83513/01-HC
M83513/01-HC Documents
Military, MIL-C-83513, M83513 Series D-Type, Micro-D Plug, Male Pins 100 Position-Position PL Signal Solder Cup 0.050 Pitch x 0.050 Row to Row Panel Mount Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
M83513/01-HC Overview
Packaging for this item is Plug, Male Pins.Panel Mount is the type of mounting for the device.The product is a member of the Military, MIL-C-83513, M83513 Series.The device has 1 ports for managing a variety of tasks.It operates at an operating temperature of -55°C ~ 125°C.
