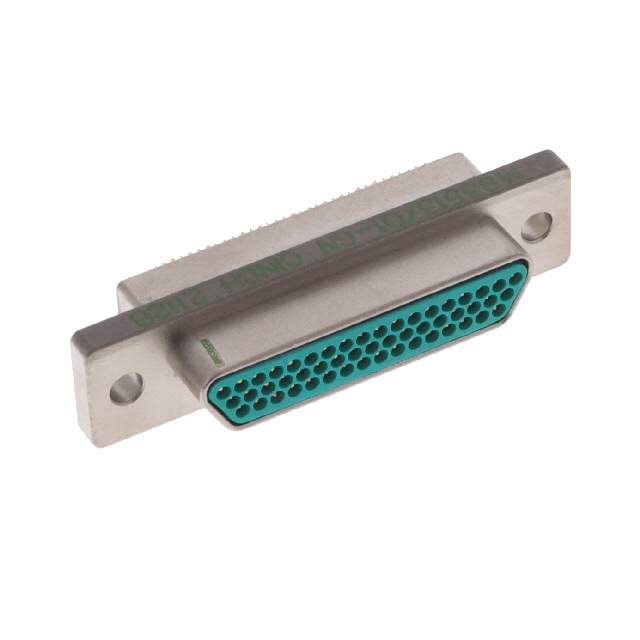

M83513/01-GN
Or copy the link below:
- Mfr.Part #
- M83513/01-GN
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 51 POS PLUG SOLDER CUP NI PLTD
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Mating Cycle (Cycles) :
- 500
- Shell Material :
- Aluminum
- Orientation :
- Straight
- RoHS Status :
- RoHS Compliant
- Shell Size :
- G
- Number of Contacts :
- 51
- Mounting :
- Panel Mount
- Current Rating :
- 3 A
- Contact Plating :
- Gold Over Nickel
- Operating Temperature :
- -55 to 150 °C
- Number of Rows :
- 3
- RoHS :
- Details
- Series :
- M83513
- Manufacturer :
- Glenair
- Shell Plating :
- Electroless Nickel
- Terminal Pitch (mm) :
- 1.27
- Product Length :
- 36.45 mm
- Body Orientation :
- Straight
- Maximum Contact Resistance (mOhm) :
- 8
- Radiation Hardening :
- No
- HTS :
- 8536.69.80.00
- Subcategory :
- MIL-Spec / MIL-Type
- Qualification :
- EREL
- Product Status :
- Active
- Mount :
- Cable, Panel
- Termination :
- Solder
- Base/Housing Material :
- LCP (Liquid Crystal Polymer)
- Product Type :
- D-Sub MIL Spec Connectors
- Insulation :
- Not Insulated
- Depth :
- 8.92mm
- Product Category :
- D-Sub MIL Spec Connectors
- Contact Material :
- BERYLLIUM COPPER
- Pitch :
- 2.5400 mm
- Body Material :
- Aluminium
- Type :
- D-Subminiature
- Housing Material :
- Aluminium
- Mounting Style :
- Panel
- Product Height (mm) :
- 8.92
- Mounting Type :
- Cable Mount
- Number of Positions :
- 51 Position
- Brand :
- Glenair
- Product :
- Connectors
- Tradename :
- MIL-DTL-83513
- Mounting Angle :
- Straight
- Maximum Current Rating (A) :
- 3
- Maximum Operating Temperature (°C) :
- 150
- Product Length (mm) :
- 36.45
- ECCN (US) :
- EAR99
- Termination Method :
- Solder Cup
- Dimensions :
- 36.45 x 10.57 x 8.92mm
- Number of Ports :
- 1
- Package :
- Bulk
- Plating :
- Electroless Nickel
- Termination Style :
- Solder Cup
- REACH SVHC :
- Unknown
- Min Operating Temperature :
- -55 °C
- Insulation Resistance (MOhm) :
- 5000
- Product Depth (mm) :
- 15.65
- Width :
- 10.57mm
- Max Operating Temperature :
- 150 °C
- Minimum Operating Temperature (°C) :
- -55
- Contact Gender :
- Pin
- Gender :
- PL
- Number of Terminals :
- 51
- Wire Gauge :
- 26 AWG
- Length :
- 36.45mm
- Datasheets
- M83513/01-GN
M83513/01-GN Documents
M83513 Series 51 Position-Position PL Solder Cable Mount Beryllium Copper
M83513/01-GN Overview
The device's mounting type is Cable Mount.It belongs to the M83513 Series of products.It's best to use it when the temperature is below 150 °C.This device must operate at a minimum temperature of -55 °C.It features 1 ports for managing a variety of tasks.The part is mounted by Cable, Panel.The device runs in -55 to 150 °C Operating Temperature.
M83513/01-GN Features
M83513 series
M83513/01-GN Applications
There are a lot of Glenair
M83513/01-GN D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
