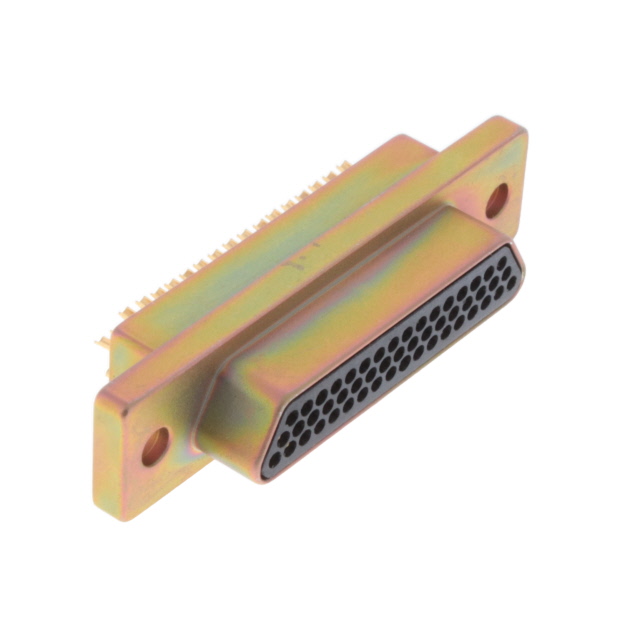

M83513/01-GC
Or copy the link below:
- Mfr.Part #
- M83513/01-GC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 51 POS PLUG SOLDER CUP CD PLTD
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Contact Plating :
- Gold
- Connector Type :
- Plug, Male Pins
- Brand :
- ITT Cannon
- Plating Thickness :
- 50μin
- Pitch :
- 1.27mm
- RoHS :
- N
- Rated Current (Signal) :
- 3A
- Number of Conductors :
- ONE
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Gender :
- Male
- Option :
- GENERAL PURPOSE
- Dielectric Withstanding Voltage :
- 600VAC V
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Pbfree Code :
- No
- Number of Rows :
- 3
- Series :
- 83513-Style Micro D Metal Shell (MDM)
- Connector Style :
- D-Type, Micro-D
- Wire Size (Min) :
- 26 AWG
- Radiation Hardening :
- No
- Shell Material, Finish :
- Aluminum, Yellow Chromate Plated Cadmium
- Shell Size :
- G
- MIL Conformance :
- yes
- Total Number of Contacts :
- 51
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Material Flammability Rating :
- --
- Mounting Type :
- Free Hanging (In-Line)
- Mixed Contacts :
- No
- Flange Feature :
- Housing/Shell (Unthreaded)
- Material :
- Aluminium
- Product :
- Connectors
- Mounting Angle :
- Straight
- RoHS Status :
- Non-RoHS Compliant
- Subcategory :
- MIL-Spec / MIL-Type
- Product Status :
- Active
- REACH SVHC :
- No SVHC
- Empty Shell :
- No
- Operating Temperature :
- -55°C~125°C
- Housing Material :
- Polymer
- Durability :
- 500 Cycles
- Manufacturer :
- ITT Cannon
- Wire Size (Max) :
- 24 AWG
- Current Rating (Amps) :
- 3A
- Voltage Rating :
- --
- Features :
- --
- Backset Spacing :
- --
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Current Rating :
- 3A
- Number of Ports :
- 1
- Mount :
- Free Hanging, Panel
- Number of Positions :
- 51
- Depth :
- 15.65mm
- Color :
- --
- Insertion Force-Max :
- 2.78 N
- Termination :
- Solder Cup
- Contact Form :
- --
- Tradename :
- MIL-DTL-83513
- Wire Gauge :
- --
- Contact Type :
- Signal
- Product Category :
- D-Sub MIL Spec Connectors
- Length :
- 36.45mm
- Product Type :
- D-Sub MIL Spec Connectors
- Mounting Style :
- Panel
- Ingress Protection :
- --
- Orientation :
- Straight
- Published :
- 2007
- Package :
- Bulk
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 11 Weeks
- Contact Resistance :
- 8mOhm
- IEC Conformance :
- No
- Reference Standard :
- MIL
- Filter Feature :
- No
- Termination Style :
- Solder Cup
- DIN Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Insulation Resistance :
- 5000000000Ohm
- Datasheets
- M83513/01-GC
M83513/01-GC Documents
83513-Style Micro D Metal Shell (MDM) Series D-Type, Micro-D Plug, Male Pins 51-Position Male Signal Solder Cup 0.050 Pitch x 0.043 Row to Row Free Hanging (In-Line) Copper Alloy Gold Aluminum, Yellow Chromate Plated Cadmium
M83513/01-GC Overview
The packaging contains Plug, Male Pins.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 83513-Style Micro D Metal Shell (MDM) Series.The device has 1 ports that can be used to manage a variety of tasks.Part Free Hanging, Panel is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
M83513/01-GC Features
83513-Style Micro D Metal Shell (MDM) series
M83513/01-GC Applications
There are a lot of ITT Cannon, LLC
M83513/01-GC D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
