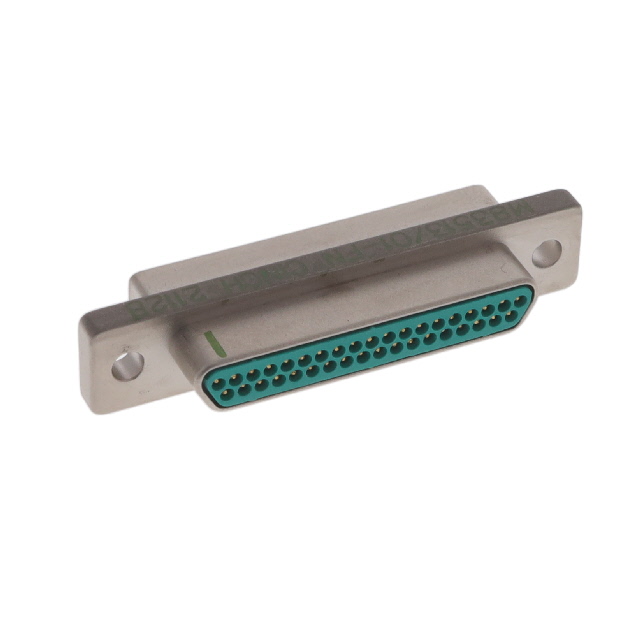

M83513/01-FN
Or copy the link below:
- Mfr.Part #
- M83513/01-FN
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- SOD
- Datasheet
- Download
- Description
- 37 POS PLUG SOLDER CUP NI PLTD
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Reference Standard :
- MIL
- Empty Shell :
- No
- Ingress Protection :
- -
- Durability :
- 500 Cycles
- Number of Ports :
- 1
- DIN Conformance :
- No
- Contact Resistance :
- 8mOhm
- Termination :
- Solder
- Mating Contact Row Spacing :
- 0.043 inch
- Product Type :
- D-Sub MIL Spec Connectors
- Brand :
- ITT Cannon
- Contact Plating :
- Gold
- Product Category :
- D-Sub MIL Spec Connectors
- Current Rating :
- 3A
- Contact Form :
- -
- Option :
- GENERAL PURPOSE
- Subcategory :
- MIL-Spec / MIL-Type
- Mixed Contacts :
- No
- Gender :
- Male
- Housing Material :
- Polymer
- Contact Material :
- COPPER ALLOY
- Pitch :
- 1.27mm
- Contact Pattern :
- STAGGERED
- Flange Feature :
- Housing/Shell (Unthreaded)
- Plating Thickness :
- 50μin
- Color :
- -
- Shell Material :
- Metal
- Material Flammability Rating :
- -
- Number of Positions :
- 37
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Signal
- Total Number of Contacts :
- 37
- Shell Size :
- F
- Insulation Resistance :
- 5000000000Ohm
- MIL Conformance :
- yes
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Backset Spacing :
- -
- Wire Gauge :
- -
- Shell Material, Finish :
- Aluminum, Nickel Plated, Electroless
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Panel
- Published :
- 2013
- Operating Temperature (Min) :
- -55°C
- Number of Terminations :
- 37
- Product Status :
- Active
- Number of Conductors :
- ONE
- Contact Finish :
- Gold
- Length :
- 37.72mm
- Series :
- M83513
- Dielectric Withstanding Voltage :
- 600VAC V
- Package :
- Bulk
- Connector Type :
- D MICROMINIATURE CONNECTOR
- Tradename :
- MIL-DTL-83513
- Number of Rows :
- 2
- Orientation :
- Straight
- Filter Feature :
- No
- Package / Case :
- SOD
- Operating Temperature :
- -55°C ~ 125°C
- IEC Conformance :
- No
- Connector Style :
- D-Type, Micro-D
- Manufacturer :
- ITT Cannon
- Contact Finish - Mating :
- NOT SPECIFIED
- Voltage Rating :
- -
- RoHS :
- Details
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Contact Style :
- RND PIN-SKT
- Features :
- -
- Current Rating (Amps) :
- 3A
- Body/Shell Style :
- PLUG
- Shell Finish :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 3A
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Depth :
- 15.65mm
- Body Breadth :
- 0.384 inch
- Datasheets
- M83513/01-FN
M83513/01-FN Documents
M83513 Series D-Type, Micro-D D MICROMINIATURE CONNECTOR 37-Position Male Signal Solder 0.050 Pitch x 0.043 Row to Row Free Hanging (In-Line) Copper Alloy Gold Aluminum, Nickel Plated, Electroless
M83513/01-FN Overview
It comes in D MICROMINIATURE CONNECTOR packaging.There is a mounting type of Free Hanging (In-Line) for this device.This product is part of the M83513 Series.The packaging with the SOD contains a device.A variety of tasks can be managed through its 1 ports.Panel is used to mount the part.There are no terminations on the chip.In this case, the device operates at -55°C ~ 125°C Operating Temperature.
M83513/01-FN Features
37 basic kinds of terminations
M83513 series
M83513/01-FN Applications
There are a lot of ITT Cannon, LLC
M83513/01-FN D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
