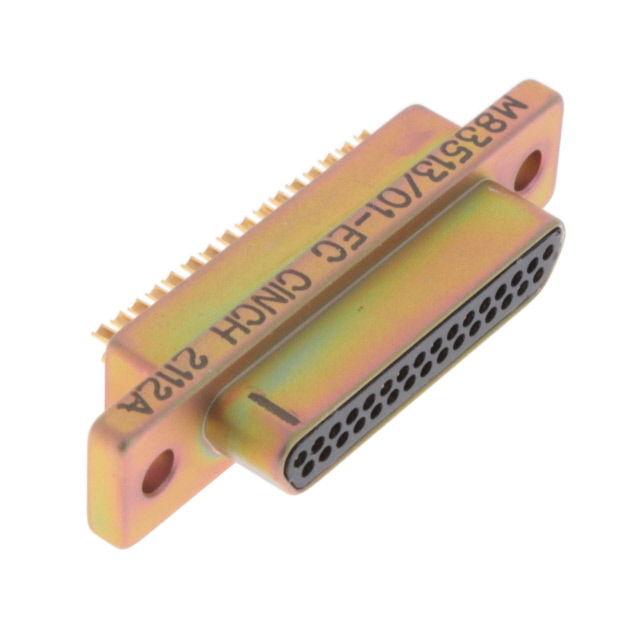

M83513/01-EC
Or copy the link below:
- Mfr.Part #
- M83513/01-EC
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- 31 POS PLUG SOLDER CUP CD PLTD
- Stock
- 4,500
- In Stock ：
- 4,500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Product Category :
- D-Sub MIL Spec Connectors
- Pitch :
- 1.27mm
- Durability :
- 500 Cycles
- Contact Form :
- -
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Mounting Angle :
- Straight
- Body Breadth :
- 0.384 inch
- Termination :
- Solder Cup
- Orientation :
- Straight
- Number of Conductors :
- ONE
- Series :
- 83513-Style Micro D Metal Shell (MDM)
- Contact Finish :
- Gold
- Termination Style :
- Solder Cup
- Contact Resistance :
- 8mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Mating Contact Row Spacing :
- 0.043 inch
- Filter Feature :
- No
- RoHS Status :
- Non-RoHS Compliant
- Current Rating :
- 3A
- Contact Plating :
- Gold
- Product Status :
- Active
- Operating Temperature :
- -55°C~125°C
- Shell Size :
- E
- Mixed Contacts :
- No
- Housing Material :
- Polymer
- Factory Lead Time :
- 5 Weeks
- Manufacturer :
- ITT Cannon
- Rated Current (Signal) :
- 3A
- Mount :
- Free Hanging, Panel
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Plating Thickness :
- 50μin
- RoHS :
- N
- Contact Type :
- Signal
- Withdrawl Force-Min :
- 0.139 N
- Voltage Rating :
- -
- Contact Material :
- COPPER ALLOY
- Min Operating Temperature :
- -55 °C
- Ingress Protection :
- -
- Backset Spacing :
- -
- Number of Rows :
- 2
- Connector Style :
- D-Type, Micro-D
- Flange Feature :
- Housing/Shell (Unthreaded)
- Package :
- Bulk
- Pbfree Code :
- No
- Color :
- -
- Empty Shell :
- No
- Brand :
- ITT Cannon
- Features :
- -
- Gender :
- Male
- Insulation Resistance :
- 5000000000Ohm
- Mounting Style :
- Panel
- Tradename :
- MIL-DTL-83513
- Subcategory :
- MIL-Spec / MIL-Type
- Packaging :
- Bulk
- Length - Termination :
- 0.11 inch
- IEC Conformance :
- No
- Shell Material, Finish :
- Aluminum, Yellow Chromate Plated Cadmium
- Wire Gauge :
- -
- MIL Conformance :
- yes
- Number of Positions :
- 31
- Product :
- Connectors
- Current Rating (Amps) :
- 3A
- Product Type :
- D-Sub MIL Spec Connectors
- Connector Type :
- Plug, Male Pins
- Total Number of Contacts :
- 31
- DIN Conformance :
- No
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Material Flammability Rating :
- -
- Mounting Type :
- Free Hanging (In-Line)
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Reference Standard :
- MIL
- Additional Feature :
- STANDARD: MIL-DTL-83513
- Max Operating Temperature :
- 125 °C
- Dielectric Withstanding Voltage :
- 600VAC V
- Datasheets
- M83513/01-EC
M83513/01-EC Documents
83513-Style Micro D Metal Shell (MDM) Series D-Type, Micro-D Plug, Male Pins 31-Position Male Signal Solder Cup 0.050 Pitch x 0.043 Row to Row Free Hanging (In-Line) Copper Alloy Gold Aluminum, Yellow Chromate Plated Cadmium
M83513/01-EC Overview
The product comes in a package of Plug, Male Pins.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the 83513-Style Micro D Metal Shell (MDM) Series of products.Additionally, there are other features, such as STANDARD: MIL-DTL-83513.Whenever it's below 125 °C, it's best to use it.The device must operate at a temperature of -55 °C at all times.Free Hanging, Panel mounts the part.There is no operating temperature for the device.
M83513/01-EC Features
83513-Style Micro D Metal Shell (MDM) series
M83513/01-EC Applications
There are a lot of ITT Cannon, LLC
M83513/01-EC D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
