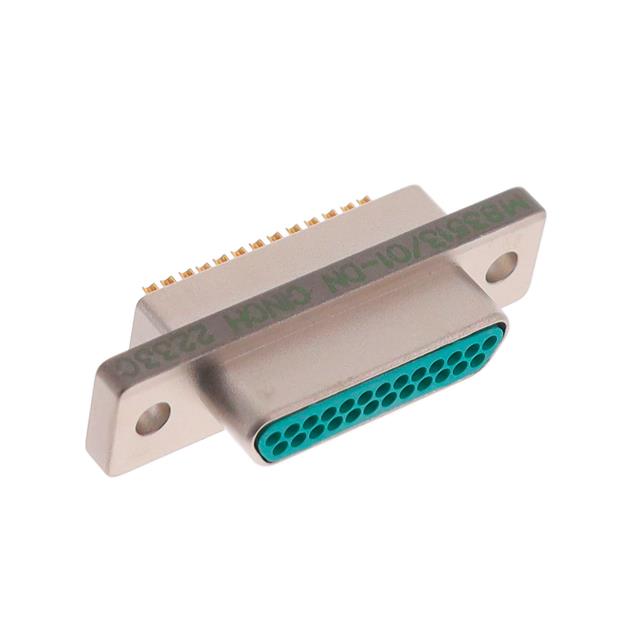

M83513/01-DN

Manufacturer :

Cinch Connectivity Solutions

Product Category :

D-Sub Connector Assemblies

Packaging :

Bulk

Material Flammability Rating :

UL94 V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

12 Weeks

Insulation Resistance :

5000000000Ohm

Series :

Military, MIL-C-83513, M83513

Additional Feature :

STANDARD: MIL-DTL-83513

Reference Standard :

MIL

Empty Shell :

No

Number of Positions :

25

Moisture Sensitivity Level (MSL) :

Not Applicable

Durability :

500 Cycles

Shell Material, Finish :

Aluminum, Nickel Plated, Electroless

Plating Thickness :

50μin

JESD-609 Code :

e4

ECCN Code :

EAR99

Contact Finish :

Gold

Total Number of Contacts :

25

IEC Conformance :

No

Withdrawl Force-Min :

0.139 N

Current Rating (Amps) :

3A

Contact Type :

Signal

Number of Conductors :

ONE

MIL Conformance :

yes

HTS Code :

8536.69.40.30

Length - Termination :

0.11 inch

Filter Feature :

No

Mating Contact Row Spacing :

0.043 inch

Body Breadth :

0.384 inch

Operating Temperature :

-55°C~125°C

Termination :

Solder Cup

DIN Conformance :

No

Option :

GENERAL PURPOSE

Dielectric Material :

Polyester, Glass Filled

Flange Feature :

Housing/Shell (Unthreaded)

Contact Resistance :

8mOhm

Mounting Option 1 :

HOLE .096

Number of Rows :

2

Mixed Contacts :

No

Mating Contact Pitch :

0.05 inch

Connector Type :

Plug, Male Pins

Mounting Type :

Free Hanging (In-Line)

Contact Material :

COPPER ALLOY

Body Length or Diameter :

1.175 inch

RoHS Status :

Non-RoHS Compliant

Dielectric Withstanding Voltage :

600VAC V

Insulation Material :

GLASS FILLED THERMOPLASTIC

Contact Finish Thickness :

50.0μin 1.27μm

Shell Size, Connector Layout :

0.050 Pitch x 0.043 Row to Row

Connector Style :

D-Type, Micro-D
