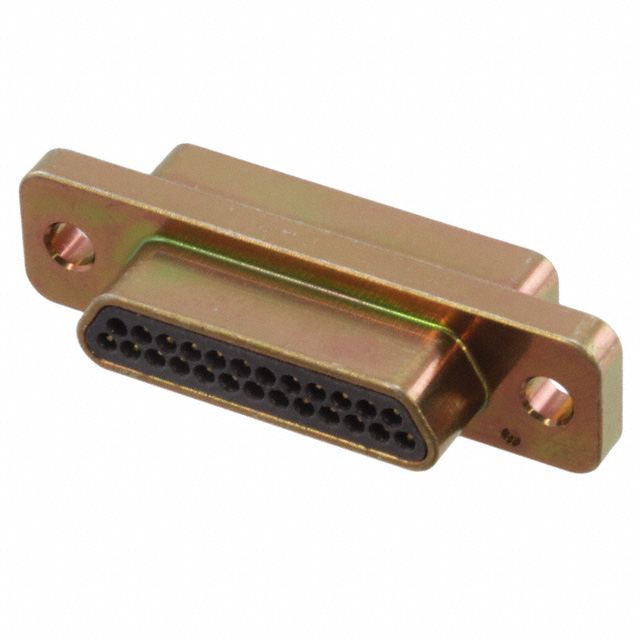

M83513/01-DC

Manufacturer :

ITT Cannon

Product Category :

D-Sub Connector Assemblies

Termination Type :

Solder

Mating Contact Row Spacing :

0.043 inch

Number of Ports :

1

Mating Cycle (Cycles) :

500

Insulation Resistance :

5000000000 Ω

Contact Gender :

Pin

Maximum Operating Temperature (°C) :

150

Terminal Length :

0.11 inch

Durability :

500 Cycles

Mounting Type :

CABLE AND PANEL

Connector Type :

D MICROMINIATURE CONNECTOR

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body/Shell Style :

PLUG

Contact Arrangement :

S25P0

Empty Shell :

No

ECCN Code :

EAR99

Product Length (mm) :

30.01

Plating Thickness :

50u inch

RoHS Status :

RoHS non-compliant

Total Number of Contacts :

25

Mating Contact Pitch :

0.05 inch

Insulation Resistance (MOhm) :

5000

Manufacturer :

Glenair

MIL Conformance :

yes

Reach Compliance Code :

Compliant

Product Height (mm) :

7.87

Contact Resistance :

8 mΩ

Maximum Contact Resistance (mOhm) :

8

Current Rating :

3 A

Operating Temperature :

-55 to 150 °C

Number of Terminals :

25

RoHS :

Details

Less Contact :

No

Mounting Style :

Panel

Mounting Option 1 :

HOLE 0.096

Number of Positions :

25 Position

Shell Material :

Aluminum

Qualification :

EREL

Series :

M83513

Body Breadth :

0.298 inch

Contact Plating :

Gold Over Nickel

Number of Rows :

2

Rated Current (Signal) :

3 A

Insulation :

Not Insulated

HTS :

8538.90.81.80

ECCN (US) :

EAR99

Gender :

PL

Tradename :

MIL-DTL-83513

Maximum Current Rating (A) :

3

Reliability :

MIL-C-83513

Wire Gauge :

26 AWG

Body Orientation :

Straight

Mixed Contacts :

No

Subcategory :

MIL-Spec / MIL-Type

Additional Feature :

STANDARD: MIL-DTL-83513

Product :

Connectors

Base/Housing Material :

Aluminum

Termination Style :

Solder Cup

Pitch :

2.5400 mm

Product Category :

D-Sub MIL Spec Connectors

IEC Conformance :

No

Contact Style :

RND PIN-SKT

Product Length :

30.01 mm

Option :

GENERAL PURPOSE

Product Status :

Active

Terminal Pitch (mm) :

1.27

Mounting Angle :

Straight

Mounting :

Panel Mount

Termination Method :

Solder Cup

Filter Feature :

No

Insertion Force-Max :

2.78 N

Shell Plating :

Cadmium

Minimum Operating Temperature (°C) :

-55

DIN Conformance :

No

Contact Material :

BERYLLIUM COPPER

HTS Code :

8536.69.40.30

Number of Contacts :

25

Shell Finish :

Cadmium

Contact Pattern :

STAGGERED

Package :

Bulk

Withdrawl Force-Min :

0.139 N

Reference Standard :

MIL

Type :

D-Subminiature

Product Type :

D-Sub MIL Spec Connectors

Dielectric Withstanding Voltage :

600VAC V

Shell Size :

B

Brand :

Glenair

Body Depth :

0.223 inch

Product Depth (mm) :

13.36
