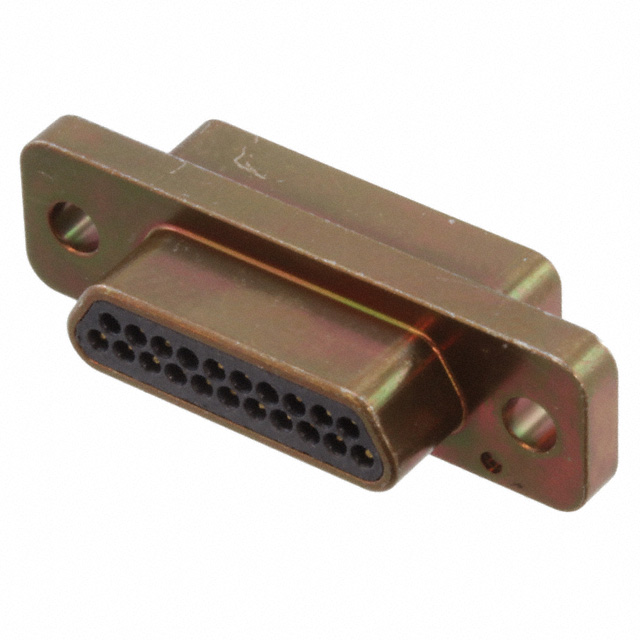

M83513/01-CC
Or copy the link below:
- Mfr.Part #
- M83513/01-CC
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D PLUG 21POS SLD CUP
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Contact Plating :
- Gold
- Plating Thickness :
- 50μin
- Brand :
- ITT Cannon
- Option :
- GENERAL PURPOSE
- Published :
- 2002
- Number of Conductors :
- ONE
- Pbfree Code :
- No
- Factory Lead Time :
- 11 Weeks
- Contact Material :
- COPPER ALLOY
- Connector Style :
- D-Type, Micro-D
- Length :
- 27.56mm
- Material :
- Aluminium
- Mounting Type :
- Free Hanging (In-Line)
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Material Flammability Rating :
- -
- Filter Feature :
- No
- Rated Current (Signal) :
- 3A
- Wire Gauge :
- -
- Mounting Style :
- Panel
- Contact Type :
- Signal
- MIL Conformance :
- yes
- Product Category :
- D-Sub MIL Spec Connectors
- Product Type :
- D-Sub MIL Spec Connectors
- Features :
- -
- Mount :
- Free Hanging, Panel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 600VAC V
- Ingress Protection :
- -
- Subcategory :
- MIL-Spec / MIL-Type
- Contact Finish :
- Gold
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Series :
- 83513-Style Micro D Metal Shell (MDM)
- Product :
- Connectors
- Dielectric Material :
- Liquid Crystal Polymer (LCP)
- Pitch :
- 1.27mm
- Housing Material :
- Polymer
- Product Status :
- Active
- Tradename :
- MIL-DTL-83513
- Number of Ports :
- 1
- RoHS :
- N
- Current Rating (Amps) :
- 3A
- Package :
- Bulk
- Reference Standard :
- MIL
- Mating Contact Row Spacing :
- 0.043 inch
- Durability :
- 500 Cycles
- REACH SVHC :
- No SVHC
- Manufacturer :
- ITT Cannon
- Total Number of Contacts :
- 21
- Contact Finish Thickness :
- 50.0μin 1.27μm
- RoHS Status :
- Non-RoHS Compliant
- Empty Shell :
- No
- Backset Spacing :
- -
- Operating Temperature :
- -55°C~125°C
- Flange Feature :
- Housing/Shell (Unthreaded)
- Shell Material, Finish :
- Aluminum, Yellow Chromate Plated Cadmium
- Mixed Contacts :
- No
- Termination Style :
- Solder Cup
- Gender :
- Male
- Connector Type :
- Plug, Male Pins
- Voltage Rating :
- -
- Termination :
- Solder Cup
- Insulation Resistance :
- 5000000000Ohm
- Current Rating :
- 3A
- DIN Conformance :
- No
- Packaging :
- Bulk
- Number of Positions :
- 21
- Shell Size :
- C
- Depth :
- 15.65mm
- Number of Rows :
- 2
- Body Breadth :
- 0.384 inch
- Contact Resistance :
- 8mOhm
- Mounting Angle :
- Straight
- Color :
- -
- Orientation :
- Straight
- Contact Form :
- -
- IEC Conformance :
- No
- Datasheets
- M83513/01-CC
83513-Style Micro D Metal Shell (MDM) Series D-Type, Micro-D Plug, Male Pins 21-Position Male Signal Solder Cup 0.050 Pitch x 0.043 Row to Row Free Hanging (In-Line) Copper Alloy Gold Aluminum, Yellow Chromate Plated Cadmium
M83513/01-CC Overview
It comes in Plug, Male Pins packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 83513-Style Micro D Metal Shell (MDM) Series.A variety of tasks can be managed through its 1 ports.Free Hanging, Panel is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
