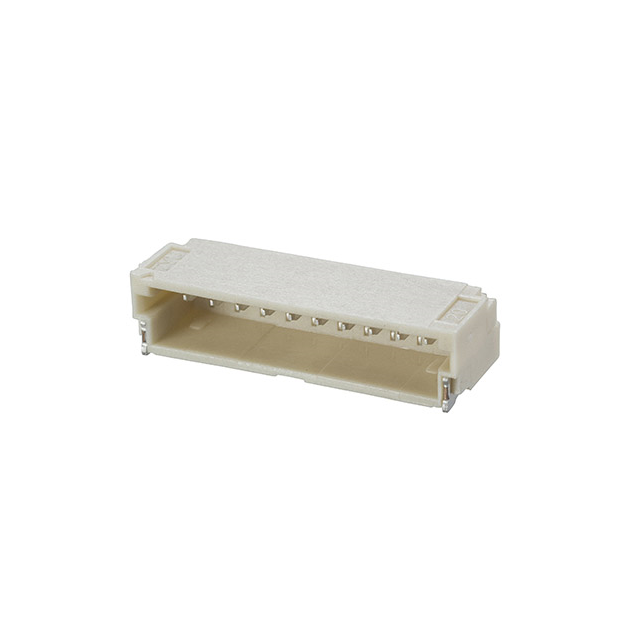

M40-4011346

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Tin

Current Rating (Amps) :

1A

Packaging :

Bulk

Factory Lead Time :

10 Weeks

Fastening Type :

Push-Pull

Contact Type :

Male Pin

DIN Conformance :

No

Mounting Type :

Surface Mount, Right Angle

Style :

Board to Cable/Wire

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

JESD-609 Code :

e3

Insulation Height :

0.114 2.90mm

Voltage - Rated :

50V

Total Number of Contacts :

13

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Natural

Filter Feature :

No

Series :

M40

Mixed Contacts :

No

Number of Positions :

13

Termination :

Solder

Package / Case :

SIL

Option :

GENERAL PURPOSE

IEC Conformance :

No

Mount :

Surface Mount

Pitch - Mating :

0.039 1.00mm

Contact Material :

Phosphor Bronze

Operating Temperature :

-25°C~85°C

Number of Rows :

1

Additional Feature :

Side Entry

Feature :

Solder Retention

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polyamide (PA9T), Nylon 9T

Contact Shape :

RECTANGULAR

MIL Conformance :

No

Published :

2008

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All
