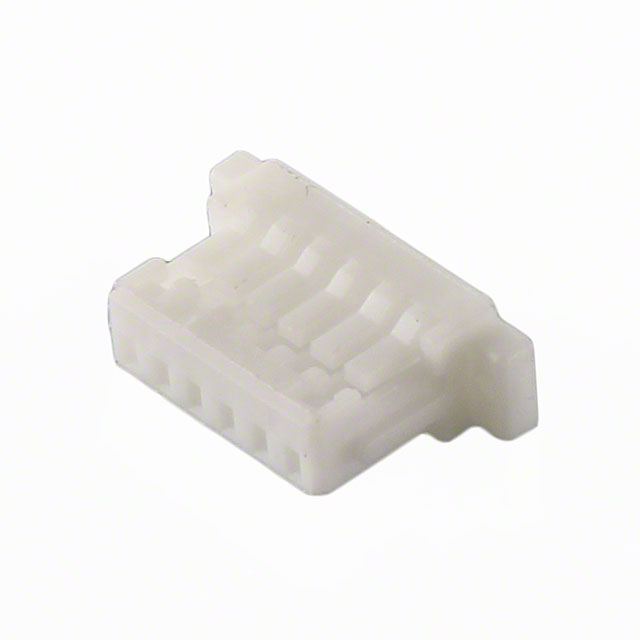

M40-1100600

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Series :

M40

MIL Conformance :

No

Dielectric Withstanding Voltage :

500VAC V

Length :

9mm

Current Rating :

1A

Housing Material :

Polybutylene

Published :

2004

Body/Shell Style :

PLUG

Contact Finish - Mating :

NOT SPECIFIED

Pitch :

0.039 1.00mm

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Insulation Resistance :

100MOhm

DIN Conformance :

No

Max Operating Temperature :

85°C

Contact Resistance :

20mOhm

Packaging :

Bulk

Note :

Contacts Not Included

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Cable, Free Hanging, PCB

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Voltage - Rated AC :

50V

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Orientation :

Straight

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Depth :

5mm

Factory Lead Time :

12 Weeks

Filter Feature :

No

Reference Standard :

UL

Polarization Key :

POLARIZED HOUSING

Max Current Rating :

1A

Package / Case :

SIL

Width :

2.8mm

Material :

Thermoplastic

Min Operating Temperature :

-20°C

Rated Current (Signal) :

1A

Mounting Type :

Free Hanging (In-Line)

Contact Termination :

Crimp

Number of Positions :

6

Contact Type :

Female Socket

Contact Design :

PREASSEM CONN

Total Number of Contacts :

6

Connector Type :

Receptacle

Number of Rows :

1

Max Voltage Rating (AC) :

50V
