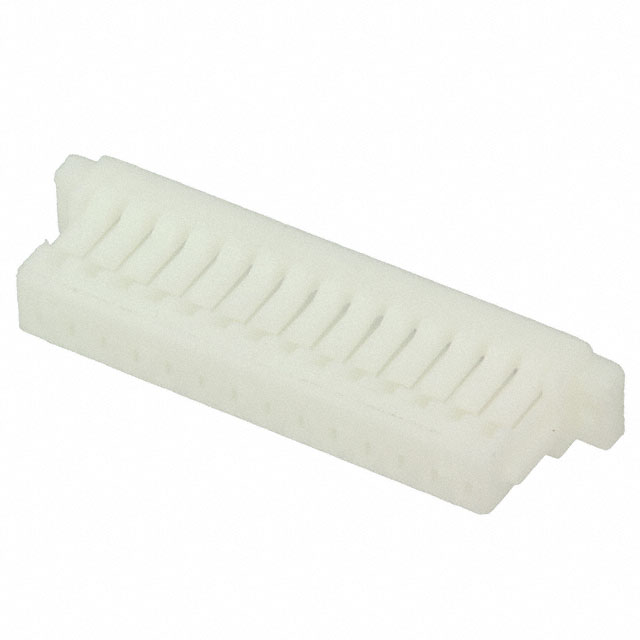

M40-1101400

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

HTS Code :

8536.69.40.40

Reference Standard :

UL

Contact Design :

PREASSEM CONN

MIL Conformance :

No

Material :

Thermoplastic

Contact Termination :

Crimp

Mount :

Cable, Free Hanging, PCB

Polarization Key :

POLARIZED HOUSING

Total Number of Contacts :

14

Filter Feature :

No

Dielectric Withstanding Voltage :

500VAC V

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Pbfree Code :

yes

Current Rating :

1A

Min Operating Temperature :

-25°C

Body/Shell Style :

PLUG

Mounting Type :

Free Hanging (In-Line)

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Width :

2.8mm

Contact Type :

Female Socket

Reliability :

COMMERCIAL

Length :

17mm

ECCN Code :

EAR99

Connector Type :

Receptacle

Factory Lead Time :

12 Weeks

Number of Positions :

14

Depth :

5mm

Published :

2004

Housing Material :

PBT

Mixed Contacts :

No

Number of Rows :

1

Package / Case :

SIL

Orientation :

Straight

Max Operating Temperature :

85°C

Pitch :

0.039 1.00mm

Packaging :

Bulk

Note :

Contacts Not Included

UL Flammability Code :

94V-0

Contact Resistance :

20mOhm

Option :

GENERAL PURPOSE

Voltage - Rated AC :

50V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

M40

Radiation Hardening :

No

Rated Current (Signal) :

1A

Insulation Resistance :

100MOhm

DIN Conformance :

No
